X990M - s-lhd-dm-sop1

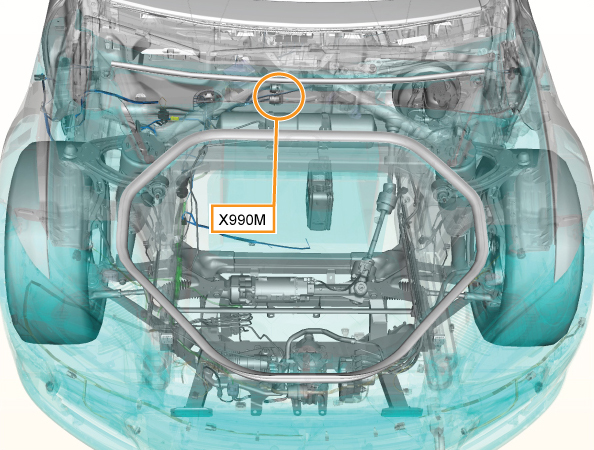

Location:

Connector Detail: yazaki_7282-8866-30

Gender:

Color: BK

Cav	Col	Gauge
1	RD	0.35
2	PK/RD	0.35
3	WH/BK	0.5
4	LB	0.5
5	TN/BK	0.35
6	DG/VT	0.35
7	WH/OG	0.35
8	WH/VT	0.35
9	GY/WH	0.35
10	VT/GY	0.35
11	BK/TN	0.35
12	RD/YE	0.35
13	TN/DG	0.35
14	WH/BN	0.35
15	RD/GY	0.35
16	WH/DG	0.35
17	WH/DB	0.35
18	GY/BN	0.35
19	GY/RD	0.35
20	GY/DG	0.35
21	GY/DB	0.35
22	DB/GY	0.35
24	PK/BK	0.35
25	RD	0.35
26	BK	0.35
27	SH	3.01
28	LG/RD	0.35
29	RD/PK	0.35
30	TN	0.35
31	WH/RD	0.35
32	GY	0.35
33	RD/WH	0.35
34	GY/WH	1
35	OG	1
36	YE/RD	0.5
37	TN	0.75
38	YE/GY	0.5
39	DB/WH	1
40	WH/DB	0.5
41	WH/BK	2
42	RD/WH	2
43	RD/BN	0.75
44	RD/BK	0.5
45	OG/RD	1
46	OG/YE	1
47	PK	0.5
48	YE	0.5
49	WH/RD	0.5
50	RD	0.5
51	WH/DG	0.5
52	DG	0.5
53	RD	1
54	DG/VT	0.5
