X024 - s-lhd-sop1

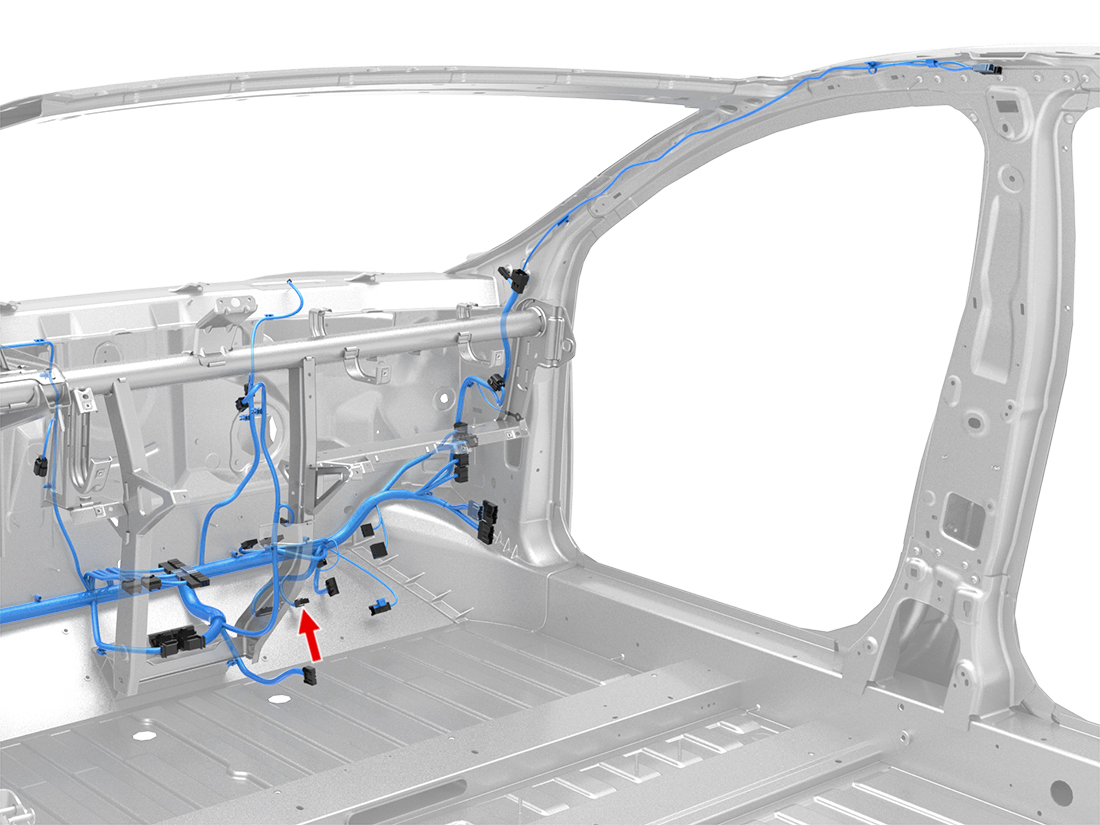

Location:
Connector Detail: jae_mx34016sf1
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 2 | RD | 0.35 |
| 3 | VT/BN | 0.35 |
| 4 | OG/LG | 0.5 |
| 5 | OG/BN | 0.35 |
| 6 | OG/WH | 0.35 |
| 9 | RD/OG | 0.35 |
| 10 | RD/YE | 0.35 |
| 11 | VT/LG | 0.5 |
| 12 | VT/WH | 0.5 |
| 13 | DB/PK | 0.5 |
