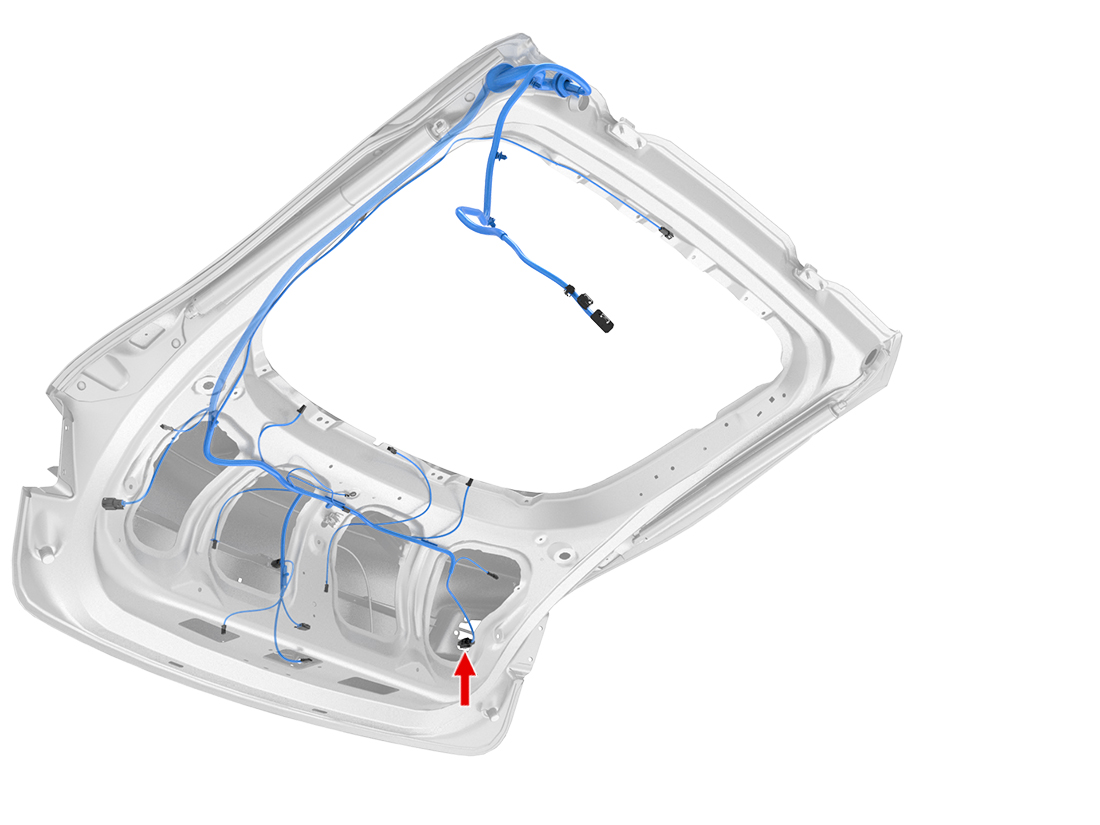

X271 - s-lhd-sop1
Location:
Connector Detail: molex_33472-0401
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | VT/GY | 0.5 |
| 2 | VT | 0.5 |
| 3 | VT/LG | 0.5 |
| 4 | BK | 0.5 |
2012-2020 Model S Connector Reference
