X316 - s-lhd-sop1

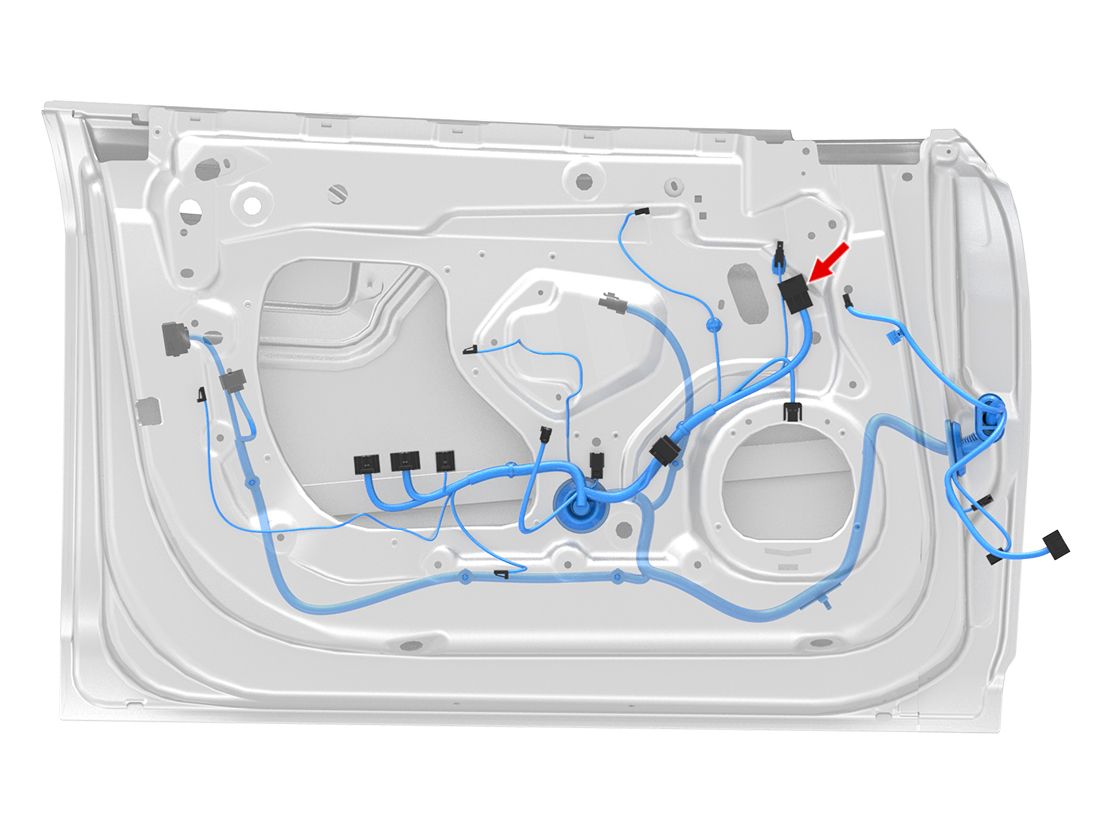

Location:
Connector Detail: amp_1-794615-8
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD | 0.35 |
| 2 | DB/GY | 0.35 |
| 3 | DB/BK | 0.35 |
| 4 | OG/BK | 0.35 |
| 5 | RD/YE | 0.35 |
| 6 | GY/OG | 0.35 |
| 7 | RD/GY | 0.35 |
| 8 | WH/RD | 0.35 |
| 10 | GY | 0.35 |
| 11 | DB/WH | 0.35 |
| 12 | BK | 0.35 |
| 13 | BK | 0.35 |
| 14 | TN/DG | 0.35 |
| 15 | BK/GY | 0.35 |
| 16 | WH/BK | 0.35 |
