X333 - s-lhd-sop1

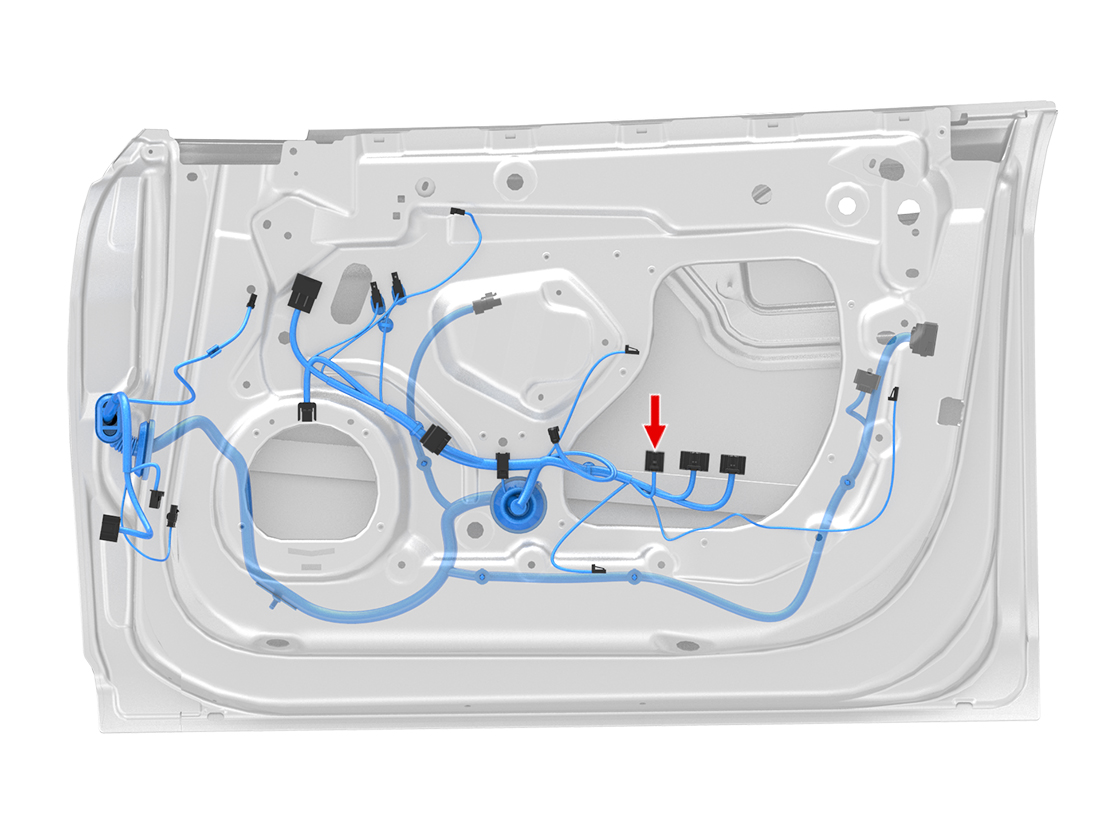

Location:
Connector Detail: molex_31372-1000
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 3 | TN/DG | 0.5 |
| 4 | TN/OG | 0.5 |
| 5 | DB | 0.5 |
| 6 | DB/WH | 0.5 |
| 7 | LB/BK | 0.75 |
| 10 | BK | 0.75 |
2012-2020 Model S Connector Reference
