X340 - s-lhd-sop1

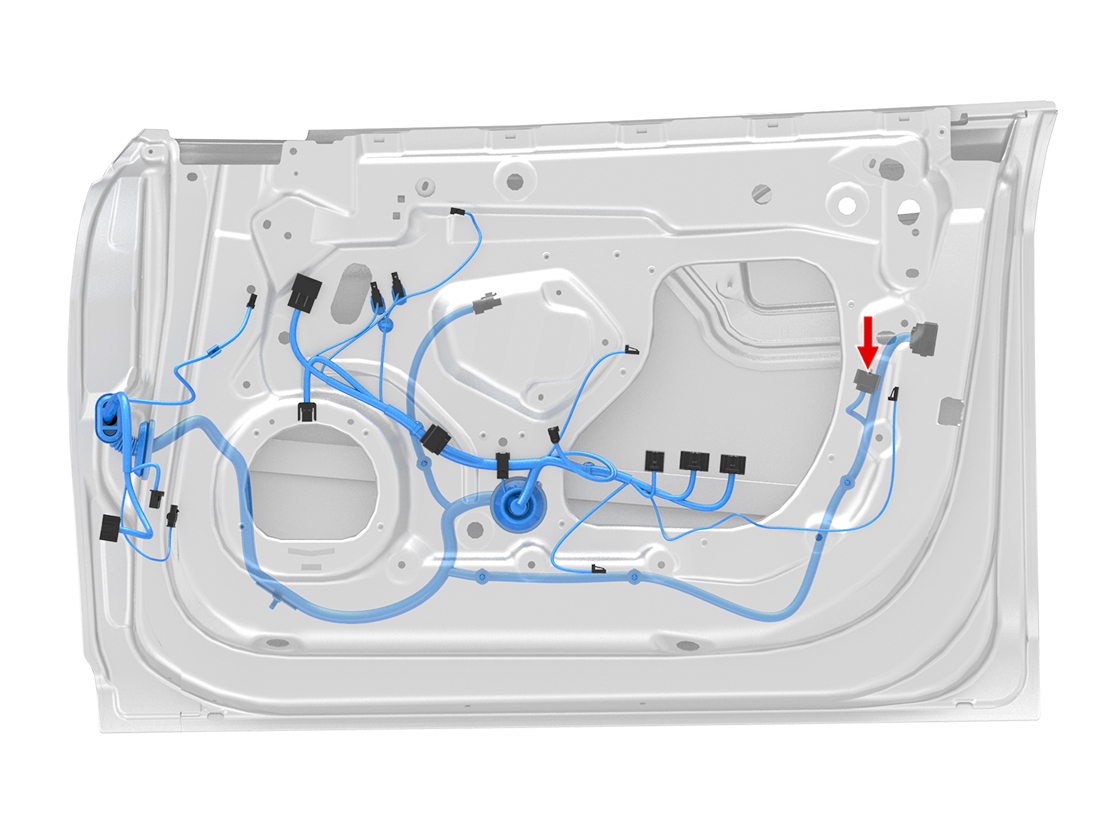

Location:
Connector Detail: yazaki_7283-8856-30
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | LB/BK | 0.5 |
| 2 | BK | 0.35 |
| 3 | LB/BN | 0.35 |
| 5 | WH/BN | 0.35 |
| 6 | DB/WH | 0.5 |
| 7 | DB | 0.5 |
| 8 | WH/DB | 0.35 |
| 9 | LB/RD | 0.35 |
| 10 | VT/LG | 0.5 |
