X370 - s-lhd-sop1

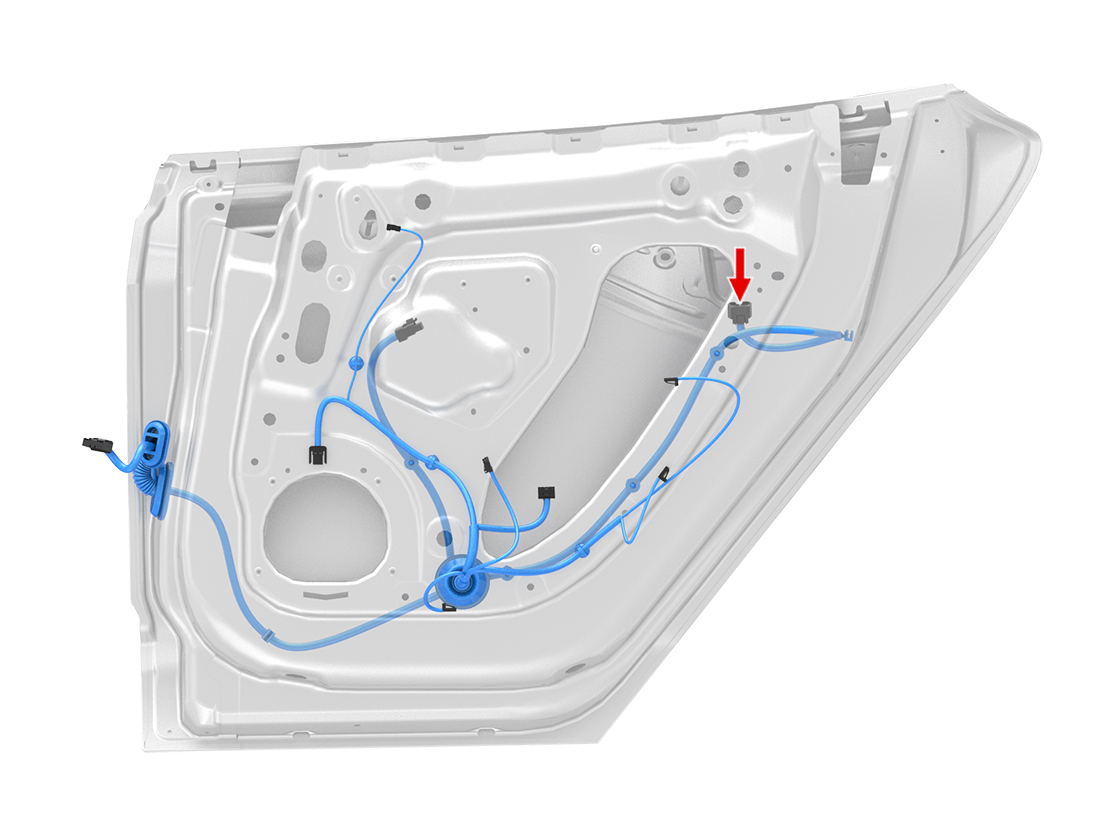

Location:
Connector Detail: yazaki_7283-8856-30
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | LG/TN | 0.5 |
| 2 | BK | 0.5 |
| 3 | BK/WH | 0.5 |
| 5 | TN/GY | 0.5 |
| 6 | TN/OG | 0.5 |
| 7 | TN/DG | 0.5 |
| 8 | VT/DG | 0.5 |
| 9 | VT/YE | 0.5 |
| 10 | VT/LG | 0.5 |
2012-2020 Model S Connector Reference
