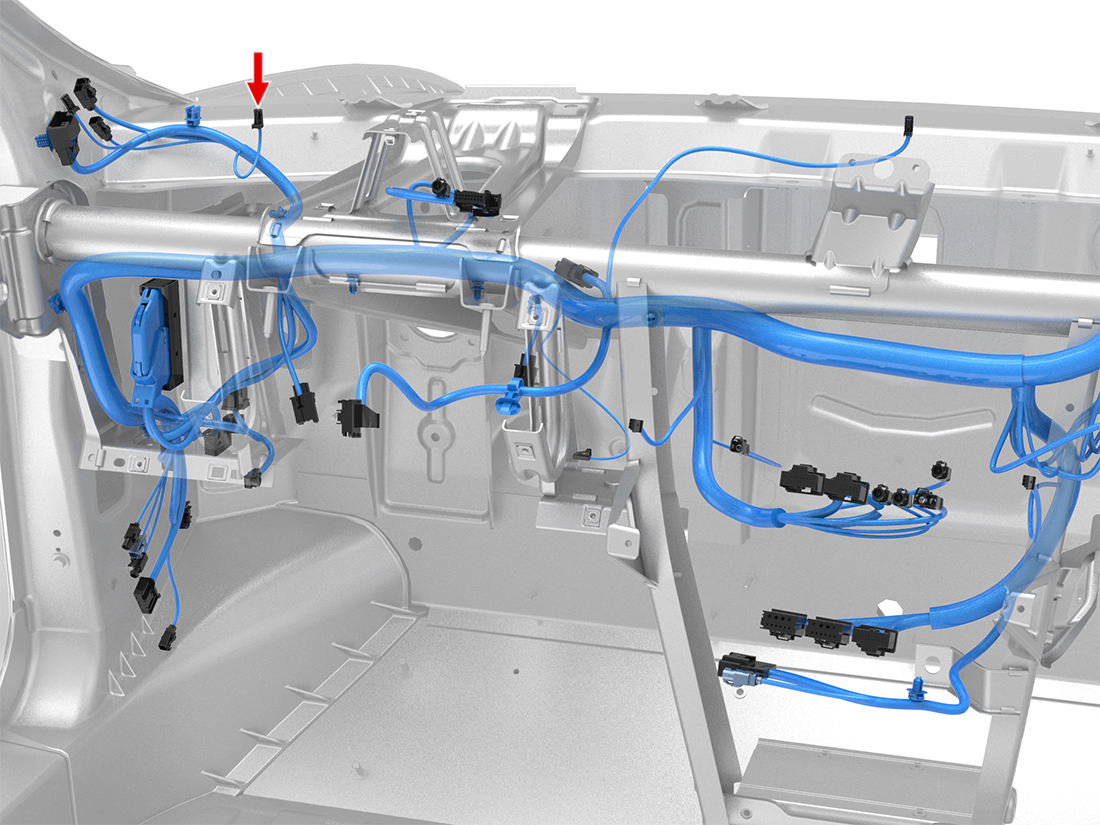

X416 - s-lhd-sop1
Location:
Connector Detail: amp_1-1534113-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | YE | 0.75 |
| 2 | YE/BK | 0.75 |
2012-2020 Model S Connector Reference
