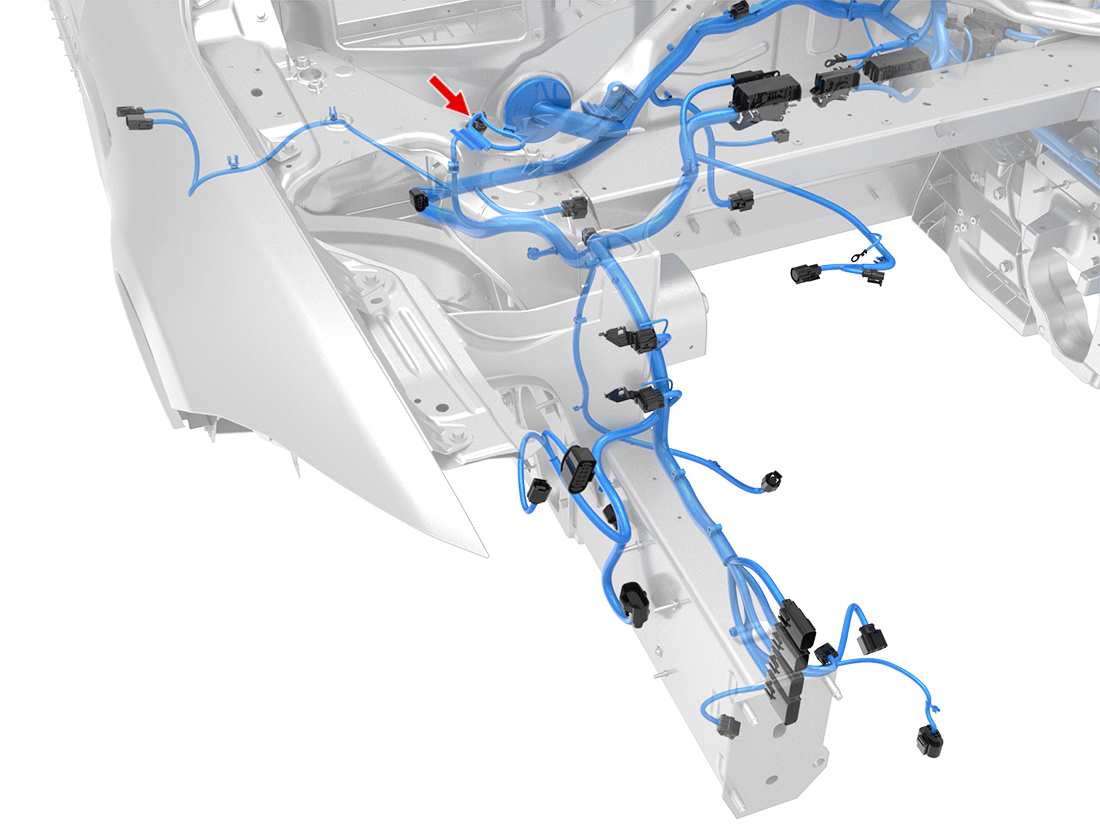

X536 - s-lhd-sop1
Location:
Connector Detail: amp_1-965261-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | YE | 1 |
| 2 | RD | 1 |
| 3 | YE | 1 |
| 4 | RD | 1 |
2012-2020 Model S Connector Reference
