X968F - s-lhd-sop1

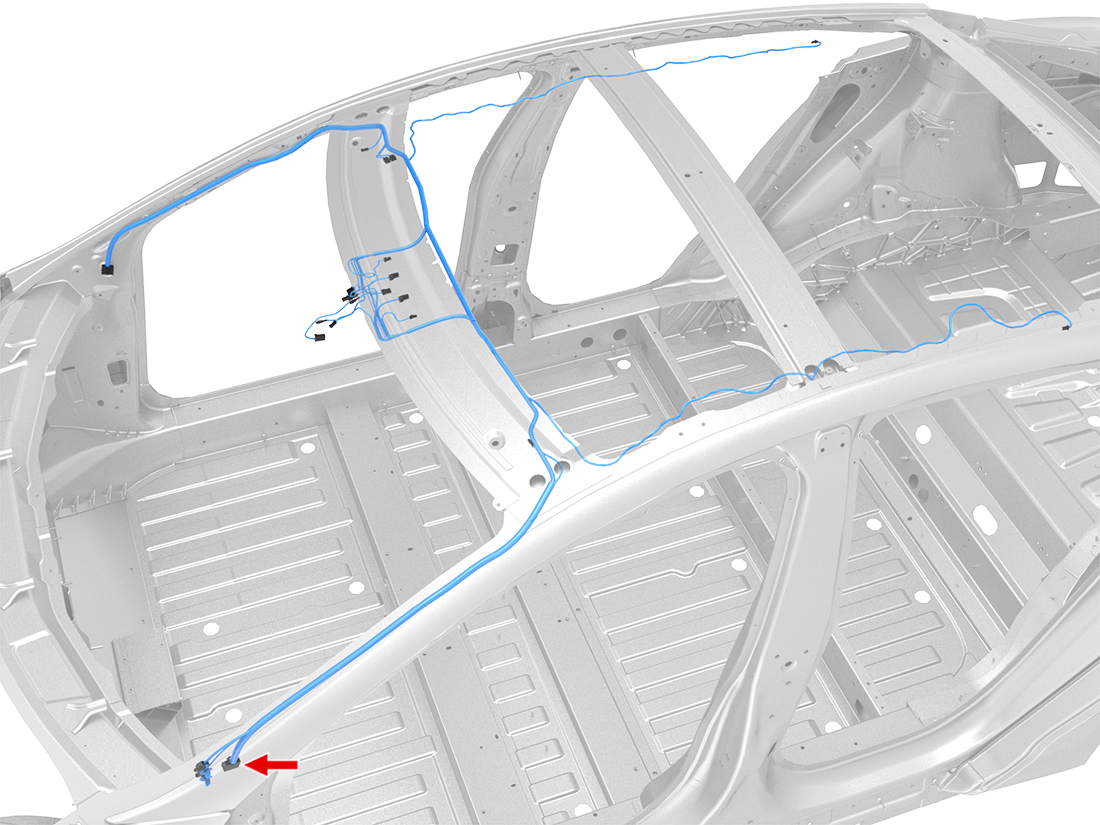

Location:
Connector Detail: yazaki_7283-6388-40
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 1 | PK | 0.35 |
| 2 | PK/BK | 0.35 |
| 3 | SH | 5.01 |
| 4 | WH | 0.35 |
| 5 | YE | 0.35 |
| 6 | SH | 5.01 |
| 7 | TN/OG | 0.5 |
| 8 | TN/DG | 0.5 |
| 9 | GY/DG | 0.35 |
| 10 | GY/DB | 0.35 |
| 11 | GY/RD | 0.35 |
| 12 | GY/YE | 0.35 |
| 16 | DG/WH | 0.5 |
| 17 | DG | 0.5 |
| 18 | LG/RD | 0.35 |
