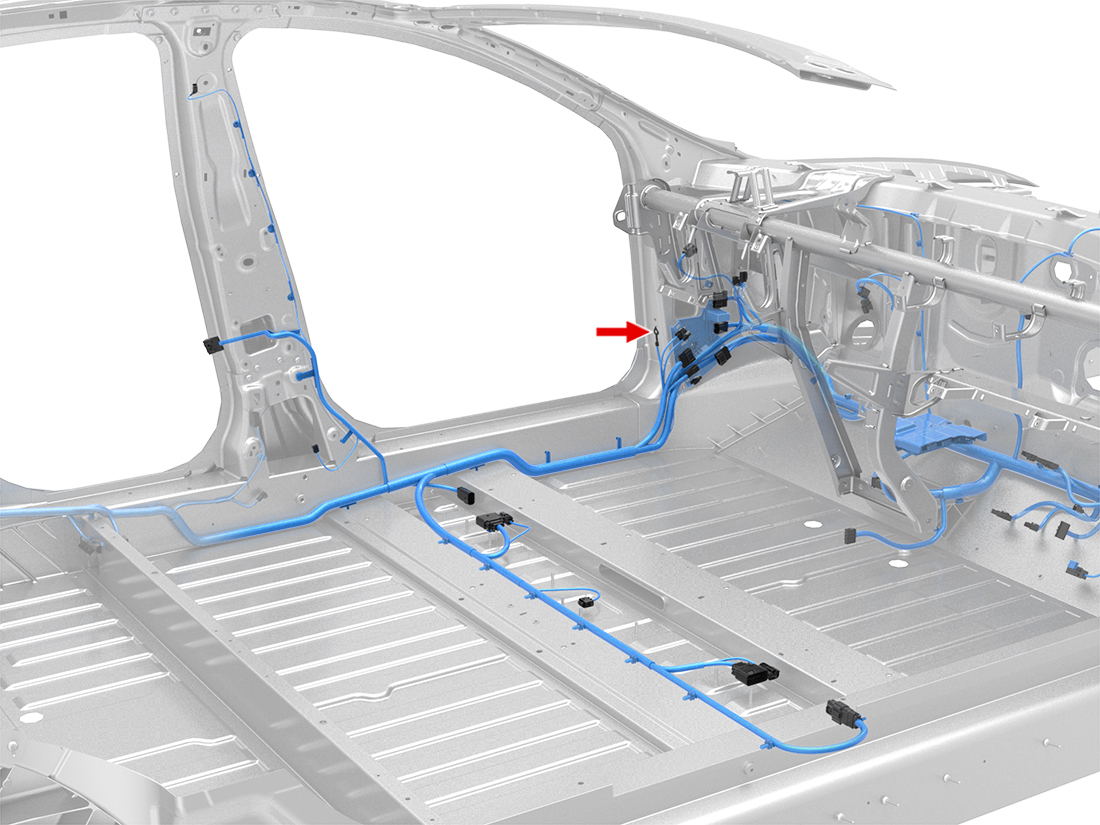

Location:

Connector Detail: YAZAKI 7009-2154

Color:

Serviceability:

Cavity	Color	Size	Plate	Destination	Terminal
	BK	0.35	SN	X916M-4	7009-2154
	BK	1	SN	X948M-12	7009-2154
	BK	1.5	SN	X947M-4	7009-2154
	BK	2	SN	G640-1	7009-2154
	BK	1.5	SN	X947M-3	7009-2154
	BK	0.5	SN	X912F-3	7009-2154
	BK	2	SN	X943M-11	7009-2154
	BK	1	SN	X982F-18	7009-2154
	BK	0.35	SN	X915M-5	7009-2154
	BK	0.35	SN	X022-6	7009-2154
	BK	0.35	SN	X108-1	7009-2154
	BK	0.5	SN	X362-8	7009-2154
	BK	0.35	SN	X911M-4	7009-2154
	BK	0.35	SN	X910M-11	7009-2154
	BK	2	SN	X948M-18	7009-2154
	BK	0.5	SN	X917F-3	7009-2154
	BK	0.5	SN	X200-19	7009-2154
	BK	1	SN	X949M-15	7009-2154
