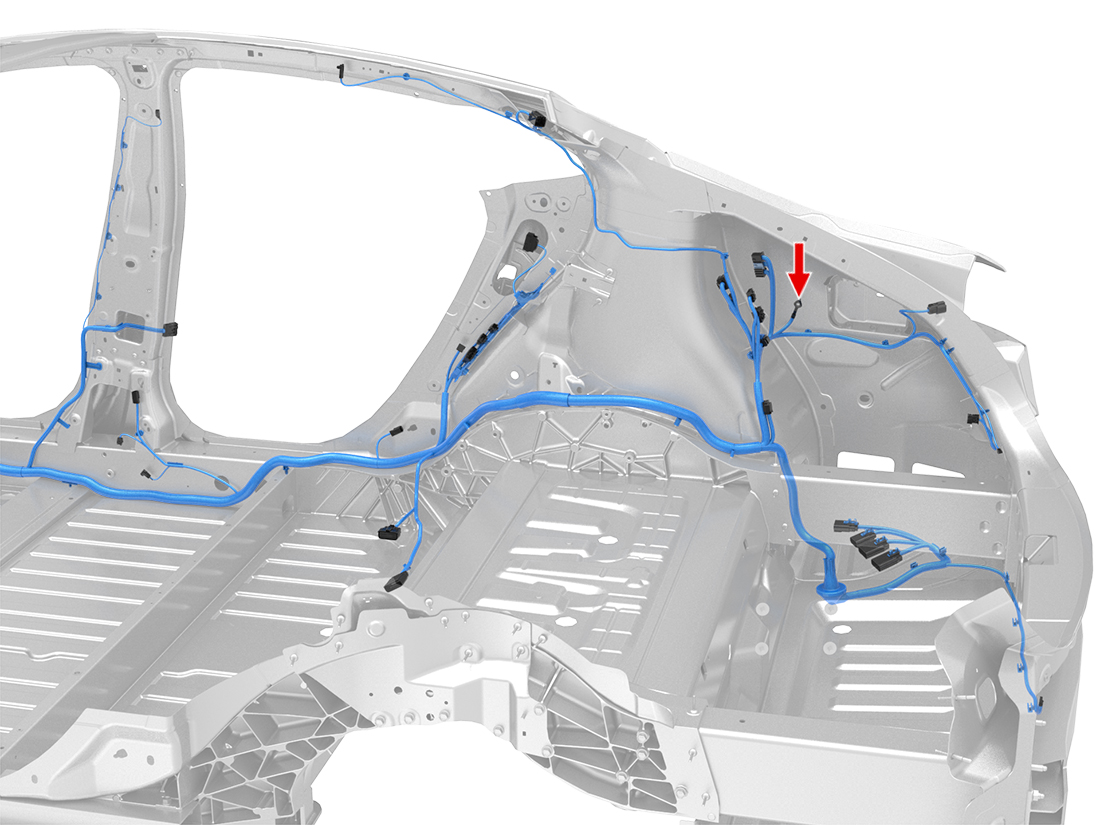

Location:
Connector Detail: YAZAKI 7009-2154
Color:
Serviceability:
| Cavity | Color | Size | Plate | Destination | Terminal |
| BK | 2 | SN | X101-1 | 7009-2154 | |
| BK | 0.5 | SN | X130B-13 | 7009-2154 | |
| BK | 0.5 | SN | X141-5 | 7009-2154 | |
| BK | 0.75 | SN | X931M-7 | 7009-2154 | |
| BK | 0.5 | SN | X291-2 | 7009-2154 | |
| BK | 2 | SN | X101-7 | 7009-2154 | |
| BK | 0.5 | SN | X042A-11 | 7009-2154 | |
| BK | 2 | SN | X397-7 | 7009-2154 | |
| BK | 2 | SN | X946M-11 | 7009-2154 | |
| BK | 0.5 | SN | X372-3 | 7009-2154 | |
| BK | 0.75 | SN | X272-5 | 7009-2154 |
