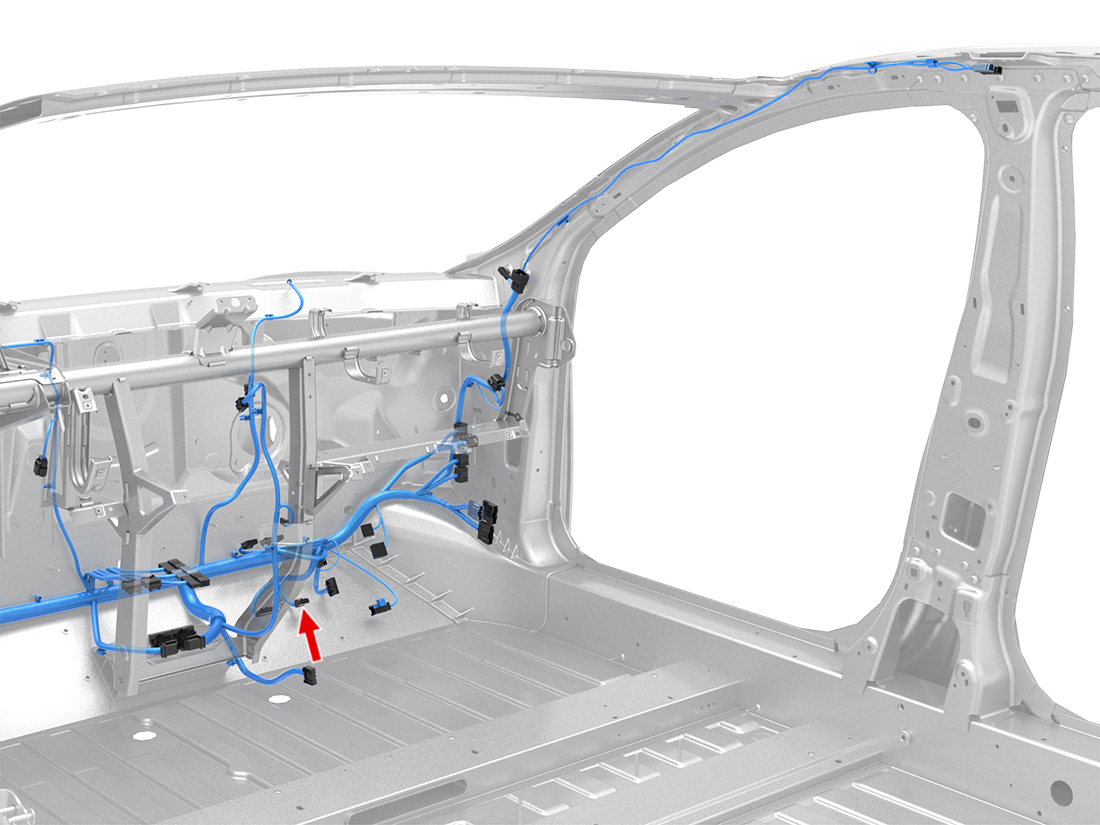

Location:

Connector Detail: JAE MX34016SF1

Color: GY

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1
2	RD/BK	0.35	SN	X953M-25	M34S75C4F2
3	WH/BU	0.35	SN	X948M-13	M34S75C4F2
4	YE	0.35	SN	X910M-10	M34S75C4F2
5	BN	0.5	SN	X953M-23	M34S75C4F2
6	OG	0.35	SN	X388-1	M34S75C4F2
7	RD/VT	0.5	SN	X954M-12	M34S75C4F2
8	WH/BK	0.5	SN	X954M-13	M34S75C4F2
9	RD/GY	0.35	SN	X953M-24	M34S75C4F2
10	RD/WH	0.35	SN	X579-8	M34S75C4F2
11	GY	0.35	SN	X944M-9	M34S75C4F2
12	WH	0.35	SN	X943M-9	M34S75C4F2
13	BU	0.35	SN		M34S75C4F2
14
15	RD/GN	0.5	SN	X954M-14	M34S75C4F2
16	GY/WH	0.5	SN	X954M-15	M34S75C4F2
