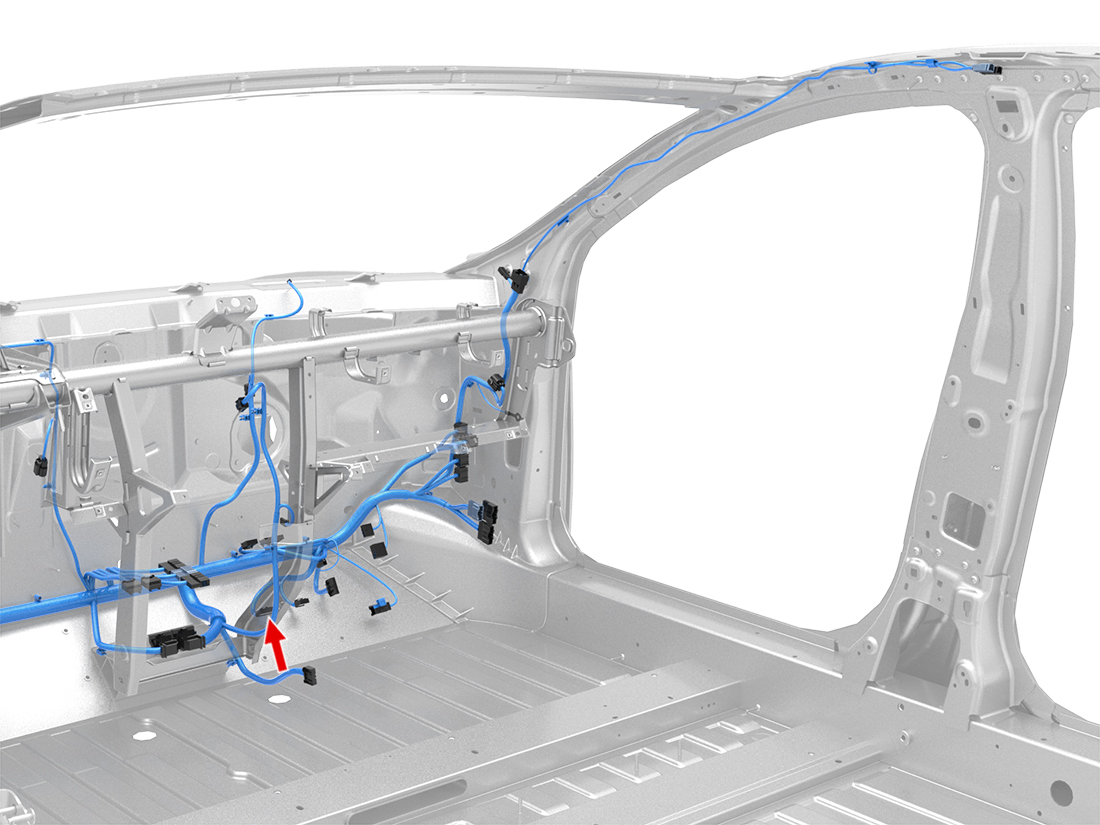

Location:

Connector Detail: JAE MX34032SF1

Color: GY

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	GN	0.35	SN	X775-10	M34S75C4F1
2	YE/WH	0.35	SN		M34S75C4F1
3	WH/BK	0.35	SN	X948M-5	M34S75C4F1
4	BU/WH	0.35	SN	X944M-17	M34S75C4F1
5	OG	0.35	SN	X943M-17	M34S75C4F1
6	WH/BU	0.35	SN	X988M-22	M34S75C4F1
7
8	VT/WH	0.35	SN		M34S75C4F1
9
10
11
12	BN	0.35	SN	X988M-12	M34S75C4F1
13
14	GY	0.35	SN	X948M-6	M34S75C4F1
15
16	VT	0.75	SN	X955M-20	M34S75C4F1
17	GN/WH	0.35	SN	X775-21	M34S75C4F1
18
19	GY/WH	0.35	SN	X988M-13	M34S75C4F1
20	BK	0.35	SN	X954M-24	M34S75C4F1
21	BU	0.35	SN	X988M-23	M34S75C4F1
22	RD/YE	0.5	SN	X954M-2	M34S75C4F1
23
24	YE	0.35	SN	X988M-10	M34S75C4F1
25
26
27
28
29	GN	0.35	SN	X578-15	M34S75C4F1
30
31
32	RD/GY	0.75	SN	X955M-12	M34S75C4F1
