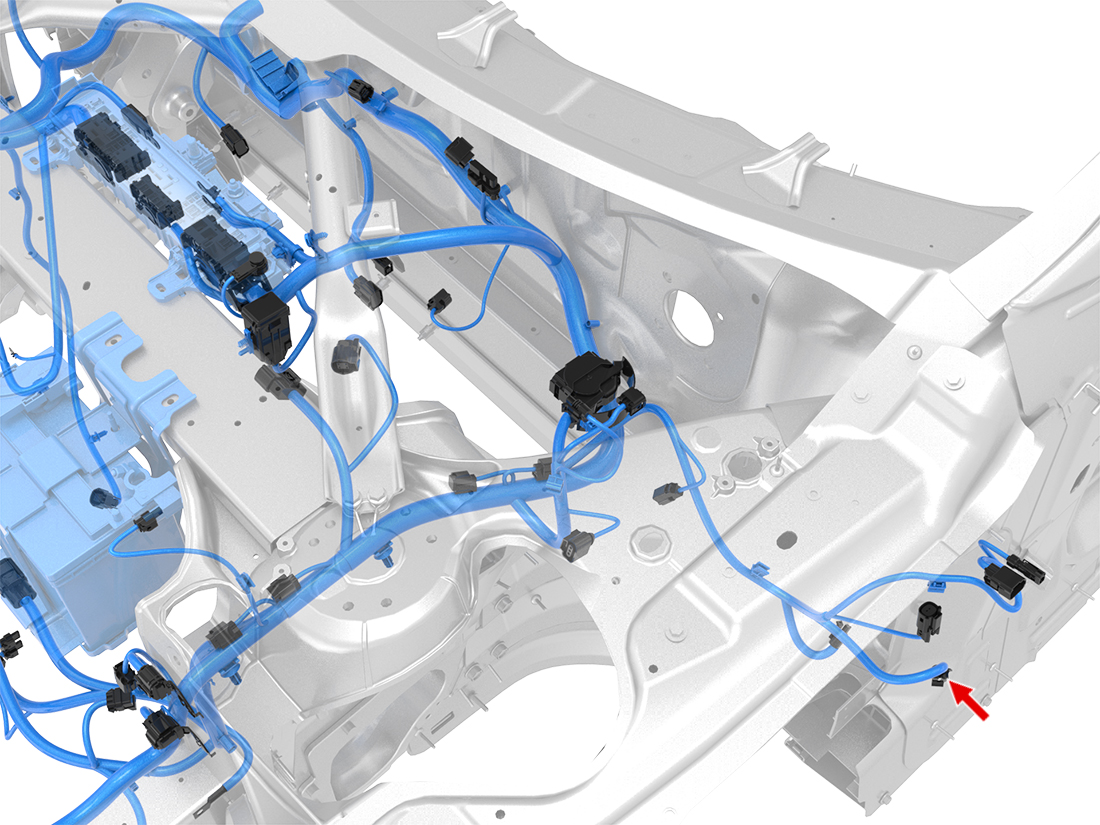

Location:
Connector Detail: DELPHI 12052641
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| A | RD/BK | 0.5 | SN | X955F-11 | 12084200 |
| B | BK | 0.5 | SN | G500-1 | 12084200 |
X030 - s-lhd-sop10
2012-2020 Model S Connector Reference
