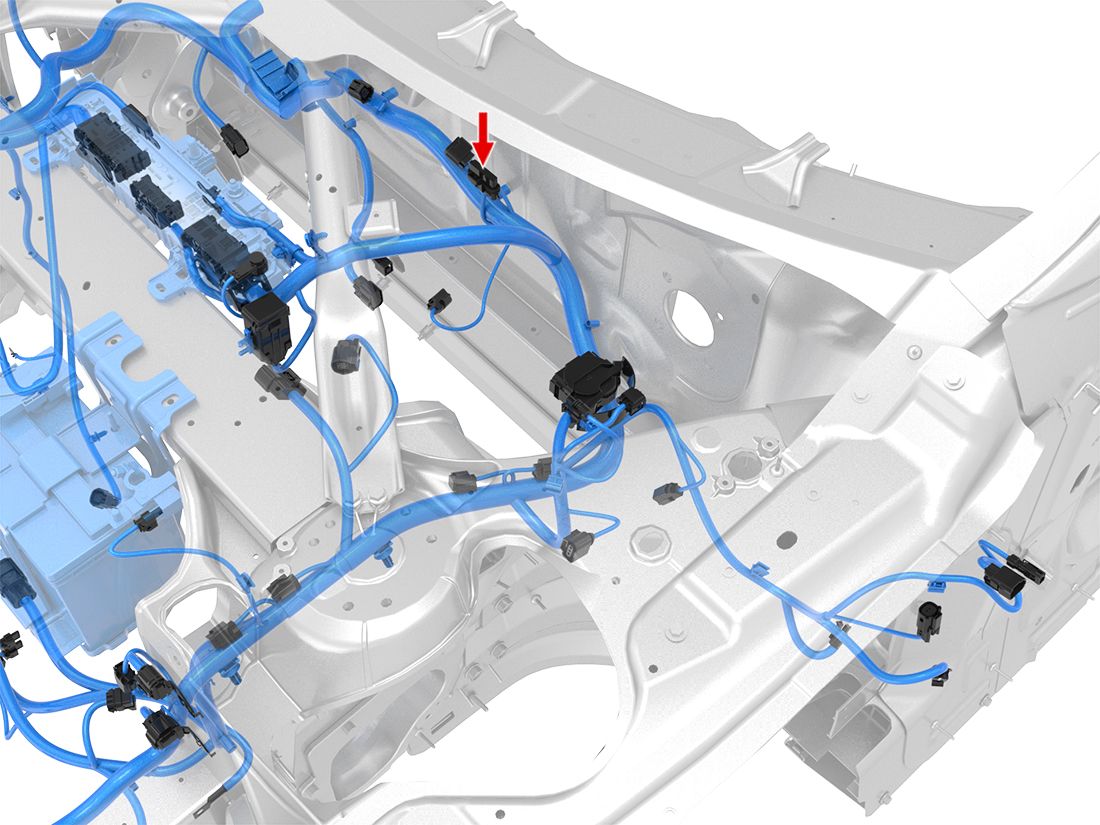

Location:
Connector Detail: DELPHI 12084891
Color: DKGY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination |
| A | ||||
| B | VT | 1 | X563-36 | |
| C | BK | 2 | G520-1 | |
| D | BN | 2 | X563-26 | |
| E | RD | 1 | X563-37 |
X034 - s-lhd-sop10
2012-2020 Model S Connector Reference
