X044 - s-lhd-sop10

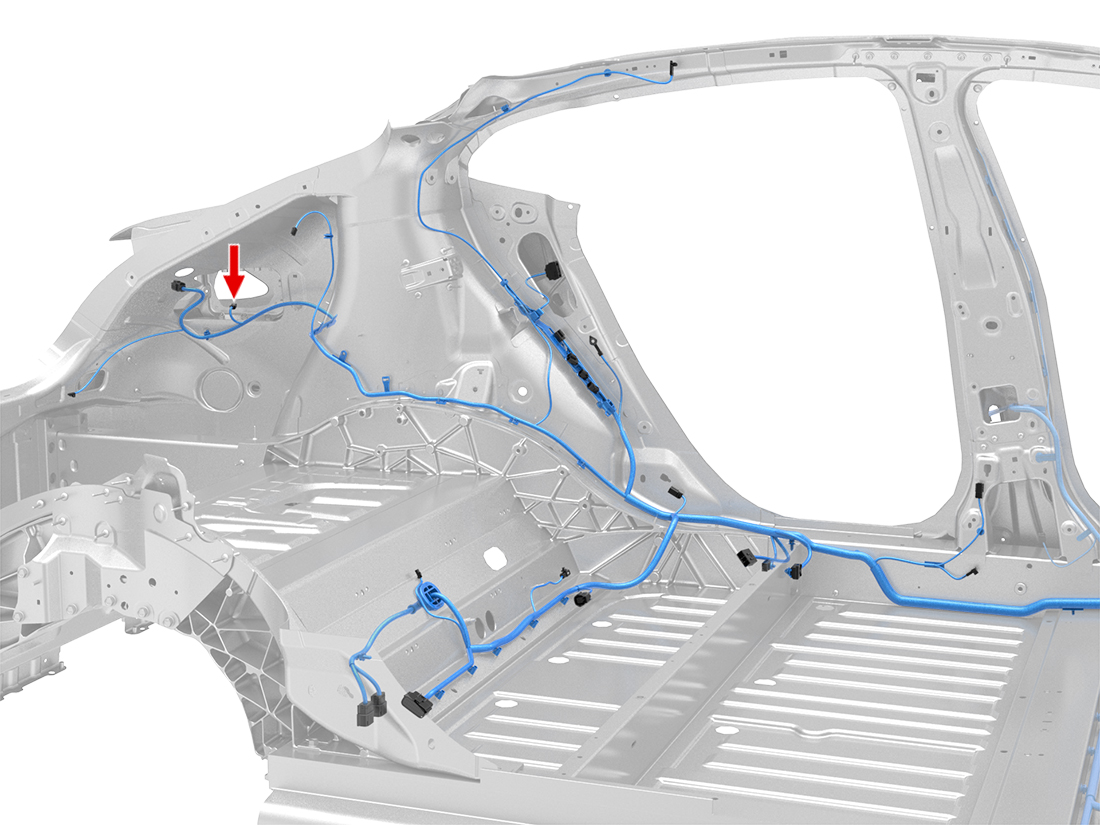

Location:

Connector Detail: AMP 185311-1

Color: BK

Serviceability: Terminal Pigtail


Cavity	Color	Size	Plate	Destination
1	RD/BU	0.5		X570-4
2	WH/BK	0.35		X976F-7
3	RD/WH	0.35		X778-4
4	BK	0.5		G720-1
5
6	RD	0.35		X778-15
