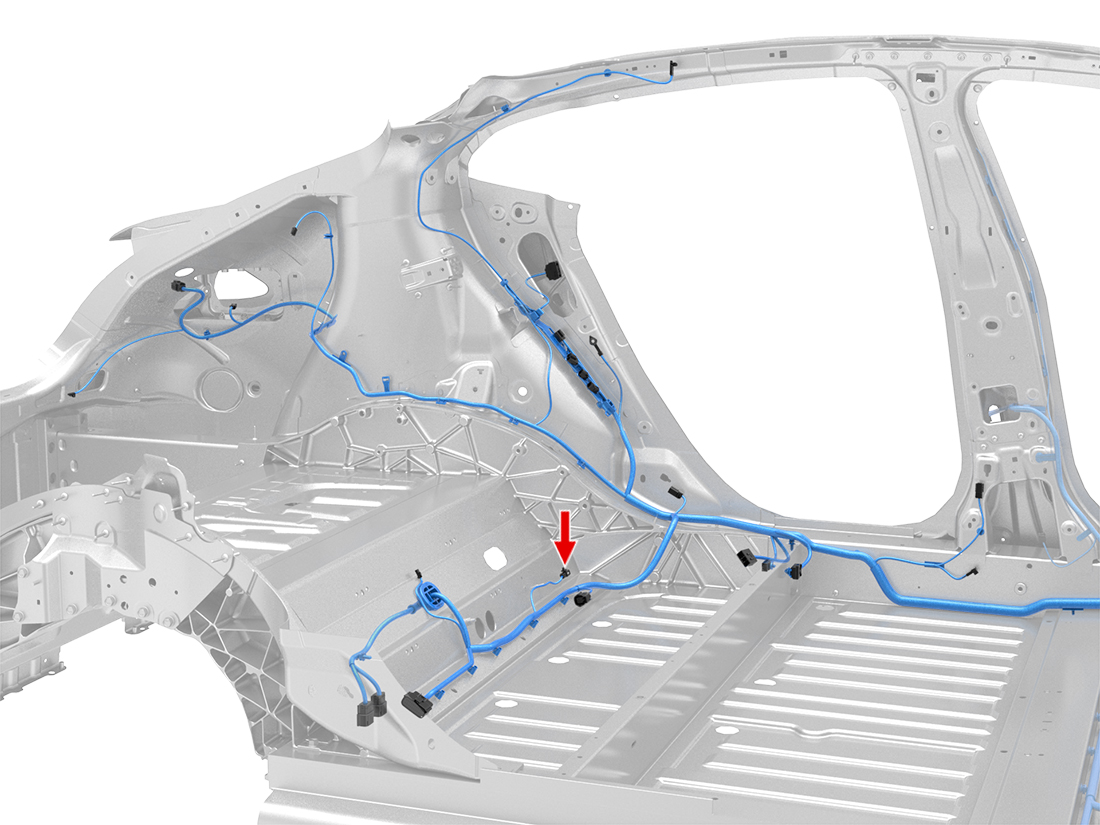

Location:
Connector Detail: AMP 178602-2
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination |
| 1 | VT | 0.35 | X976F-6 | |
| 2 | WH | 0.35 | X976F-16 |
X045 - s-lhd-sop10
2012-2020 Model S Connector Reference
