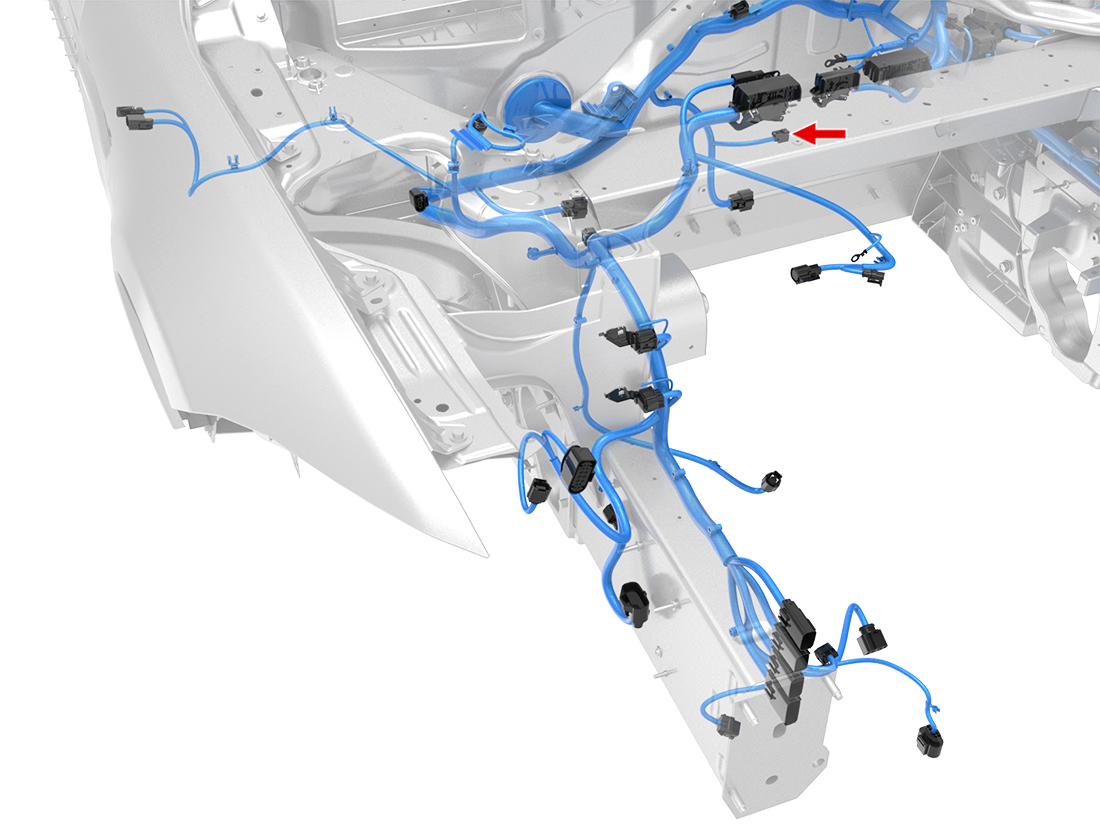

Location:
Connector Detail: YAZAKI 7283-6078-30
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | WH/BU | 0.5 | SN | X053-6 | 7116-4721-02 |
| 2 | GY/WH | 0.5 | SN | X053-16 | 7116-4721-02 |
X066 - s-lhd-sop10
2012-2020 Model S Connector Reference
