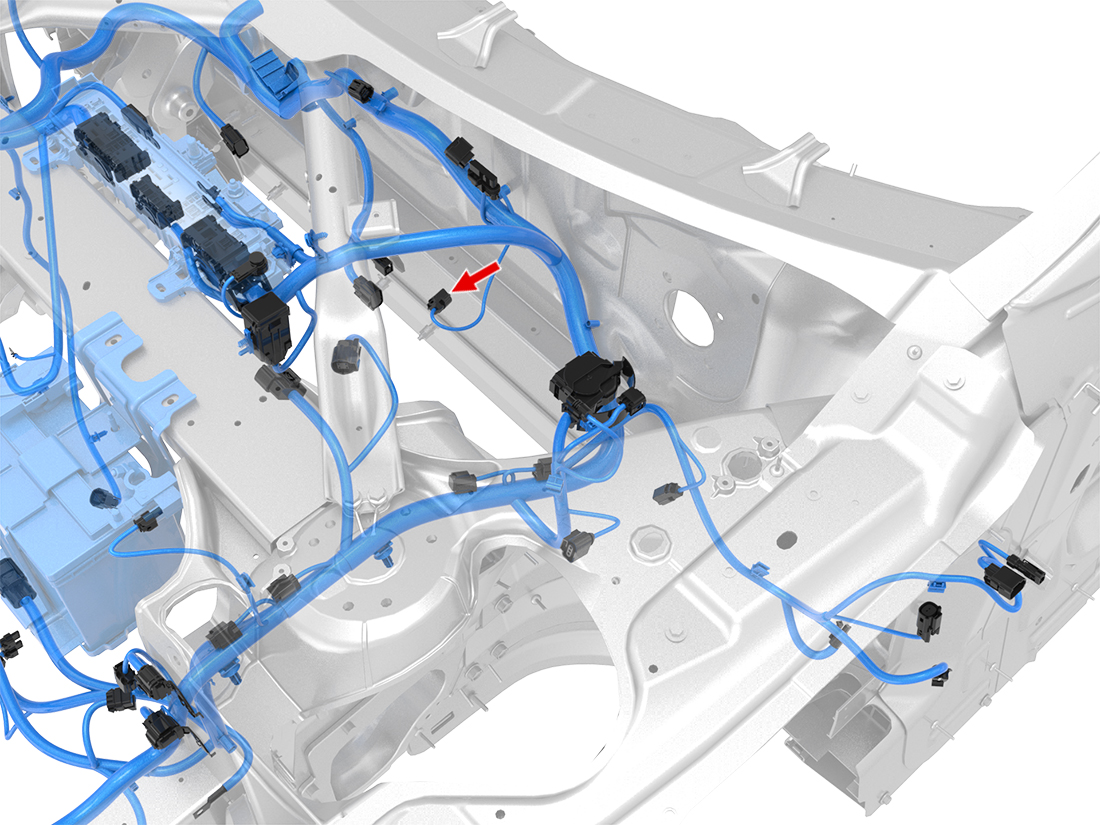

Location:
Connector Detail: MOLEX 31403-2100
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | VT/WH | 0.35 | SN | X050-8 | 33468-0022 |
| 2 | BN/WH | 0.35 | SN | X050-10 | 33468-0022 |
X068 - s-lhd-sop10
2012-2020 Model S Connector Reference
