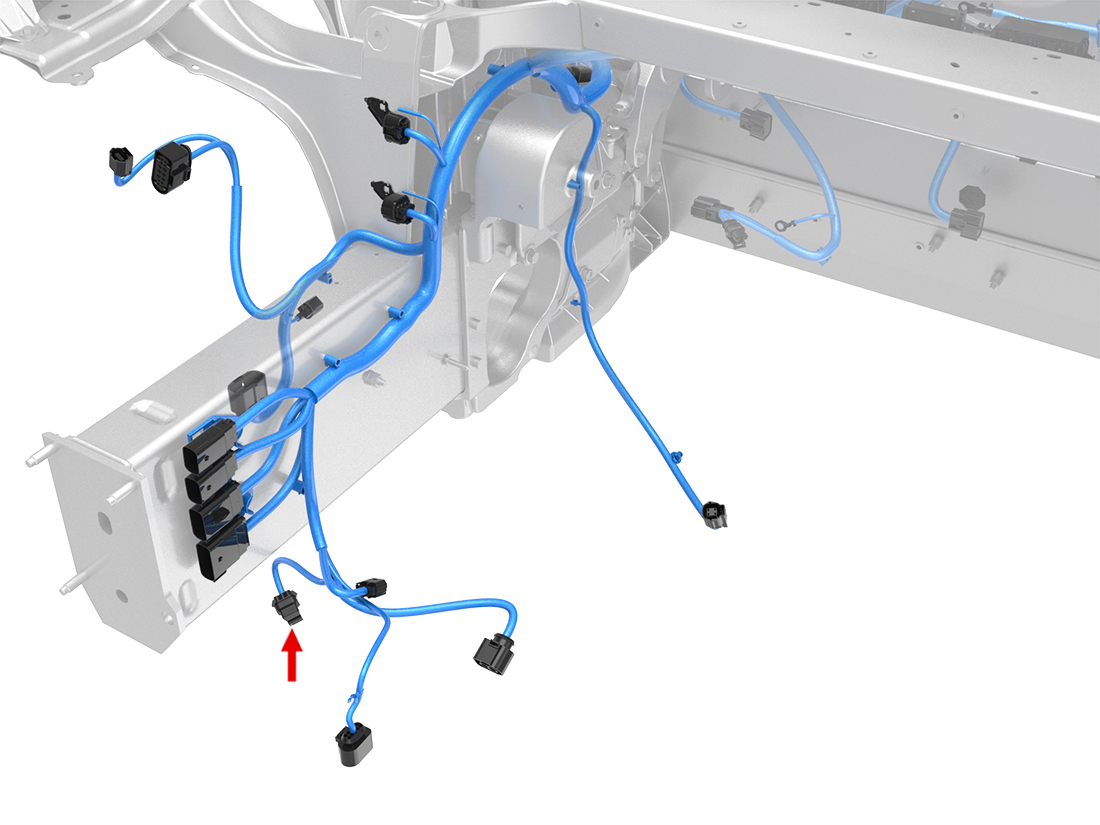

Location:
Connector Detail: DELPHI 35027669
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| A | RD/GY | 0.35 | SN | X050-15 | 12084200 |
| B | |||||
| C | BK | 0.35 | SN | G510-1 | 12084200 |
| D | BK/GY | 0.35 | SN | X052-17 | 12084200 |
| E | |||||
| F | YE/WH | 0.35 | SN | X052-7 | 12084200 |
