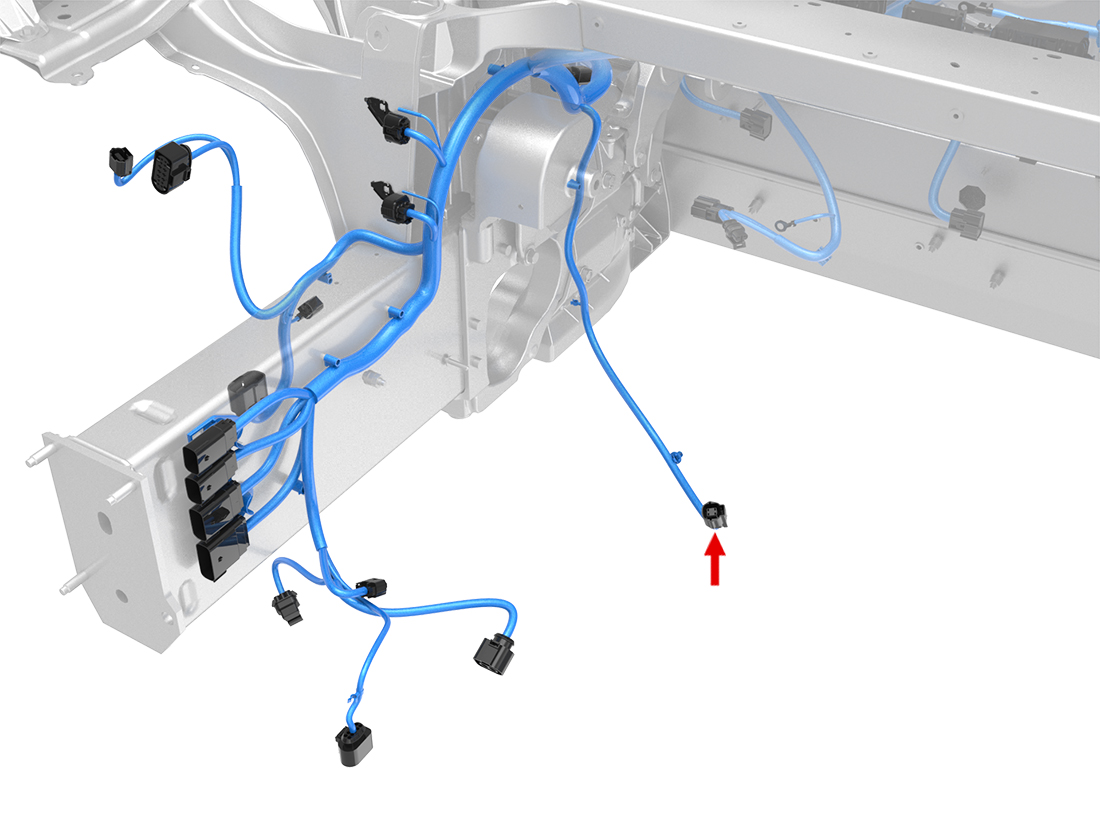

Location:
Connector Detail: SUMITOMO 6189-7757
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | RD/BK | 1 | SN | X563-8 | 8240-0264 |
| 2 | BK | 1 | SN | G510-1 | 8240-0264 |
| 3 | GY/WH | 0.35 | SN | X051-14 | 8240-0264 |
| 4 | GN/WH | 0.35 | SN | X051-4 | 8240-0264 |
