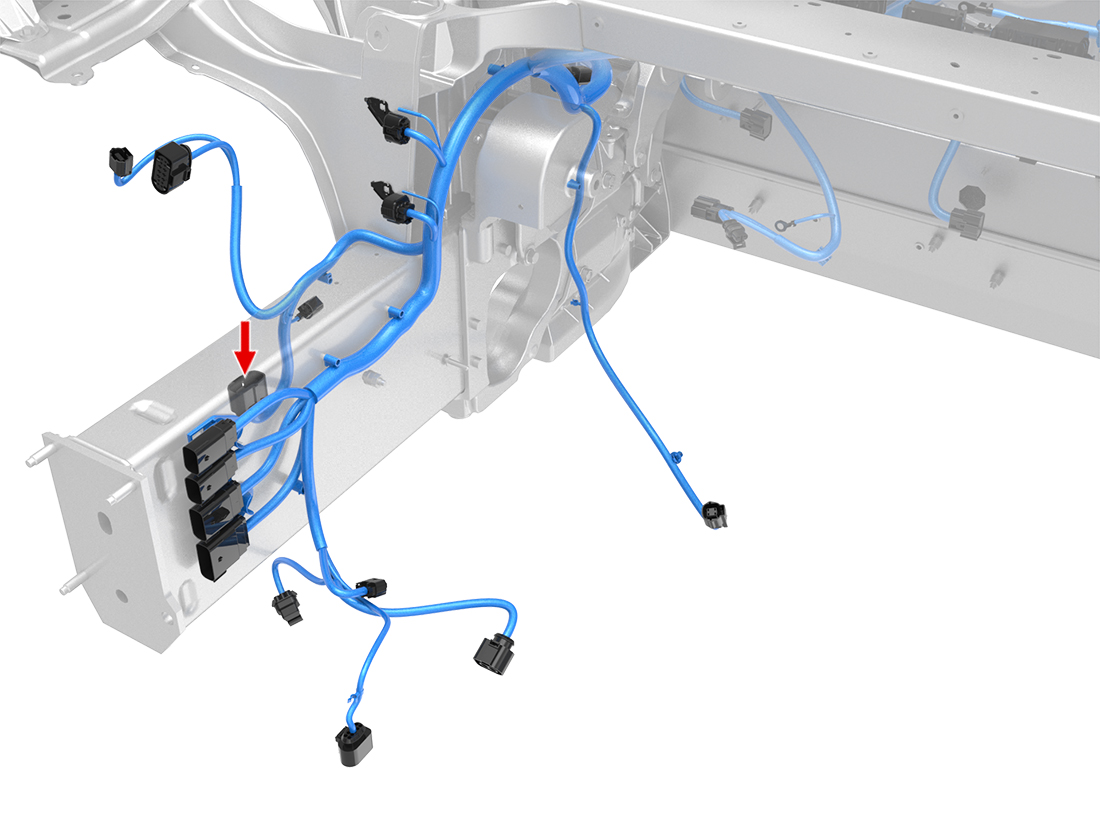

Location:
Connector Detail: SUMITOMO 6189-0588
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | OG | 5 | SN | X549-1 | 8100-2980 |
| 2 | RD/GN | 0.5 | SN | X053-12 | 8100-2980 |
| 3 | BK | 5 | SN | G510-1 | 8100-2980 |
X081 - s-lhd-sop10
2012-2020 Model S Connector Reference
