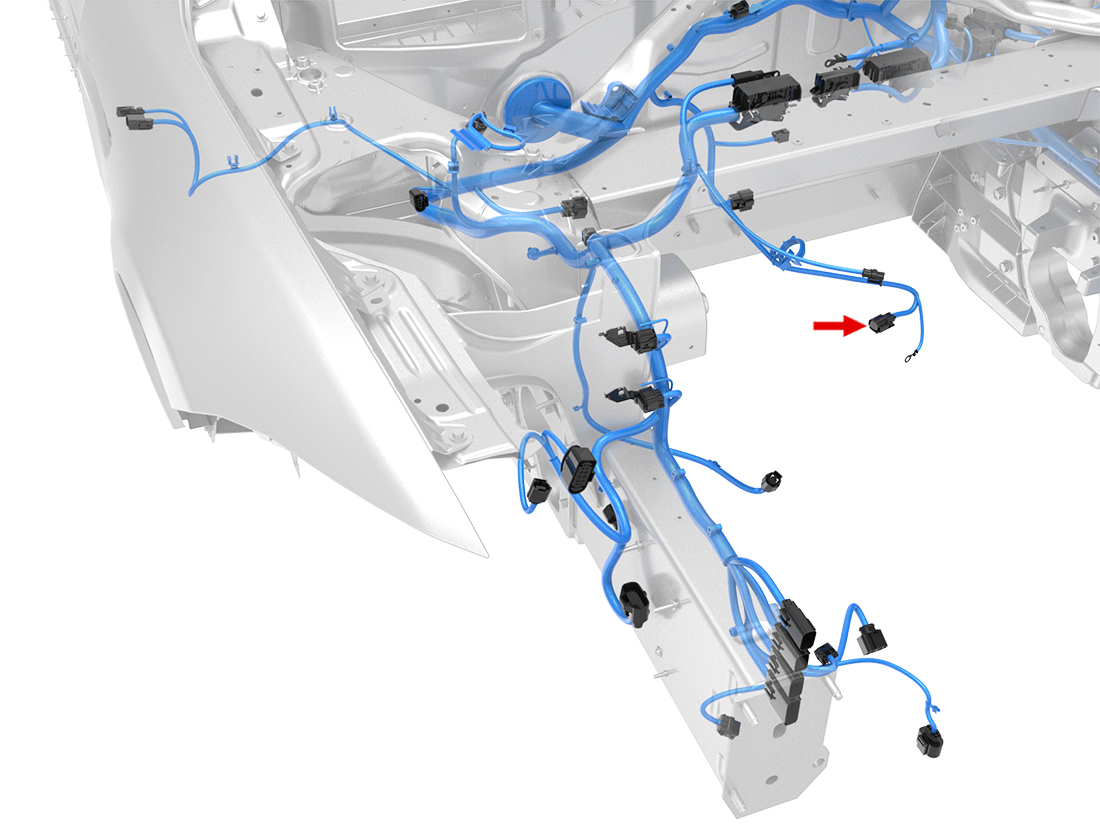

Location:

Connector Detail: MOLEX 33472-0401

Color: BK

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	RD/GN	0.5	SN	X050-18	33012-3003
2	RD/WH	0.5	SN		33012-3003
3	RD	0.5	SN		33012-3003
4	BK	0.5	SN	G510-1	33012-3003
