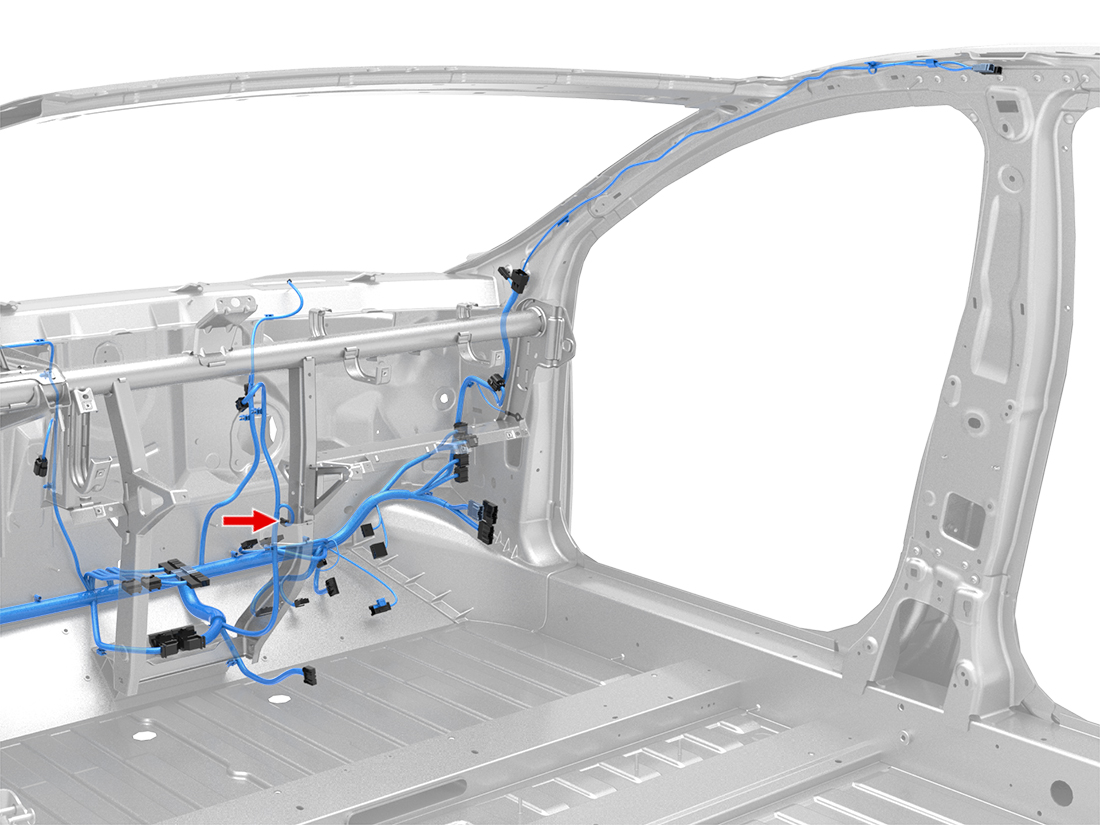

Location:
Connector Detail: AMP 936119-2
Color: YL
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | BK | 0.5 | SN | G640-1 | 5-963715-1 |
| 2 | VT | 0.35 | SN | X776-12 | 5-963715-1 |
| 3 | VT/WH | 0.35 | SN | X776-1 | 5-963715-1 |
| 4 | RD/WH | 0.5 | SN | X578-6 | 5-963715-1 |
