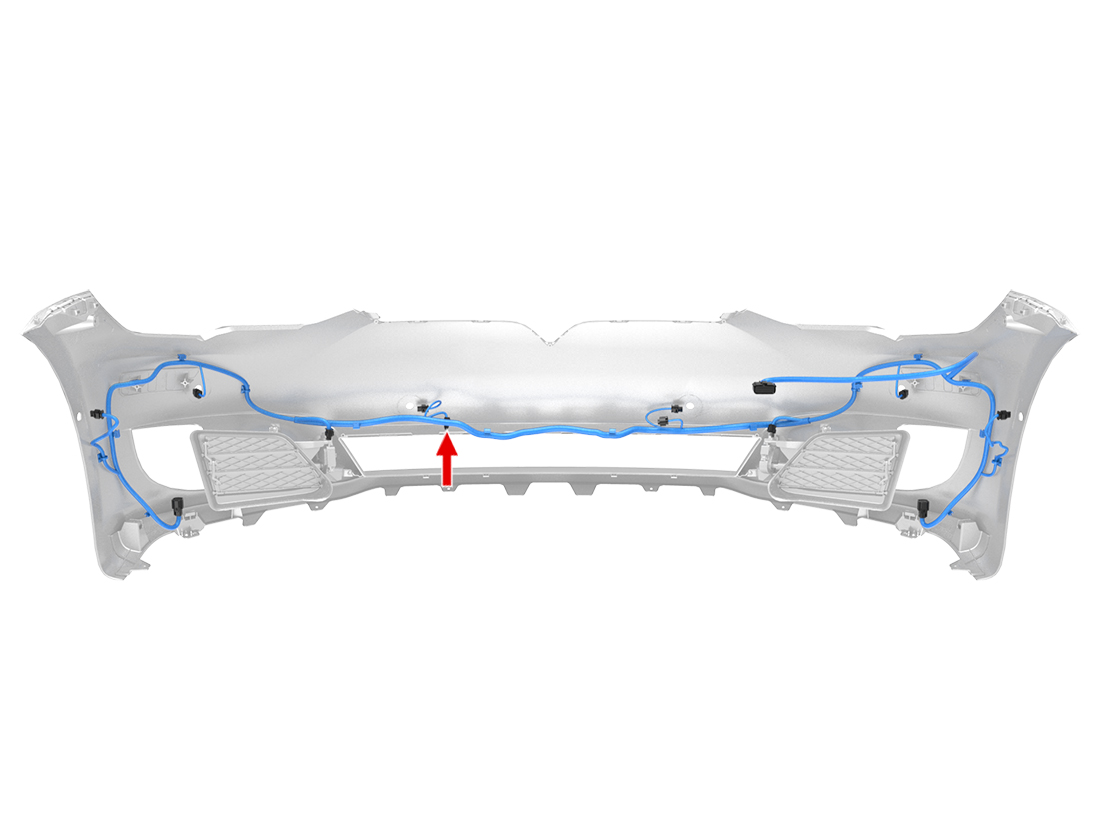

Location:
Connector Detail: YAZAKI 7123-1424
Color: NA
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | BN/WH | 0.5 | SN | X964F-10 | 7116-1471 |
| 2 | GY | 0.5 | SN | X964F-11 | 7116-1471 |
X091 - s-lhd-sop10
2012-2020 Model S Connector Reference
