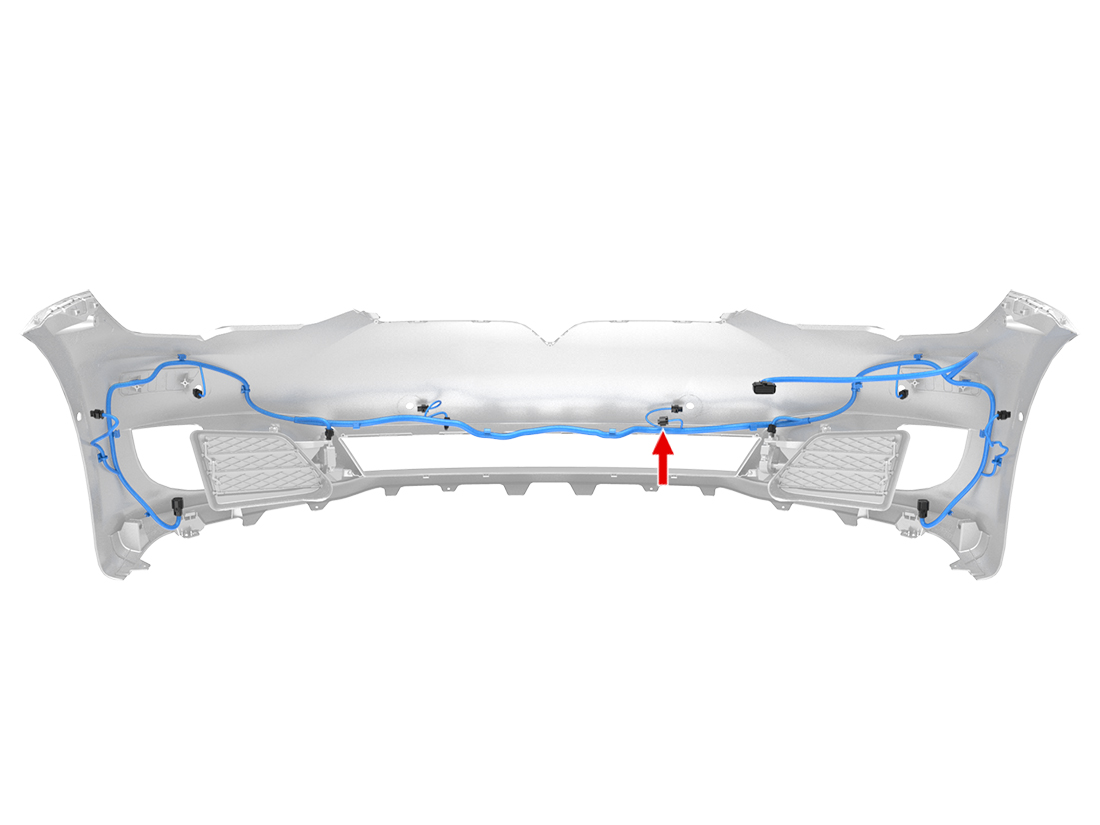

Location:
Connector Detail: AMP 2-967642-1
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | RD/BU | 0.5 | SN | 5-965906-1 | |
| 2 | BK | 0.5 | SN | 5-965906-1 | |
| 3 | GN | 0.5 | SN | 5-965906-1 |
X099 - s-lhd-sop10
2012-2020 Model S Connector Reference
