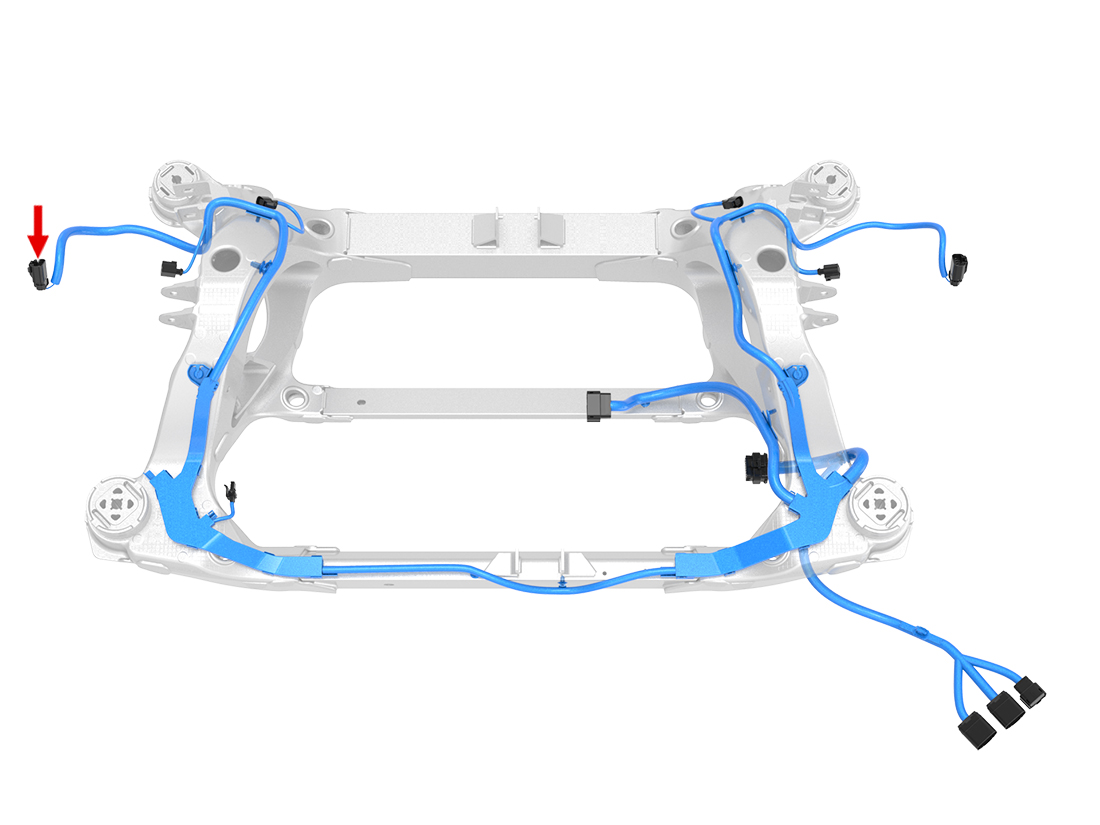

Location:
Connector Detail: FCI 54200409
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination |
| 1 | BK/WH | 2 | X930F-8 | |
| 2 | WH | 0.75 | X930F-2 | |
| 3 | OG | 0.75 | X930F-9 | |
| 4 | GY | 2 | X930F-1 |
X103 - s-lhd-sop10
2012-2020 Model S Connector Reference
