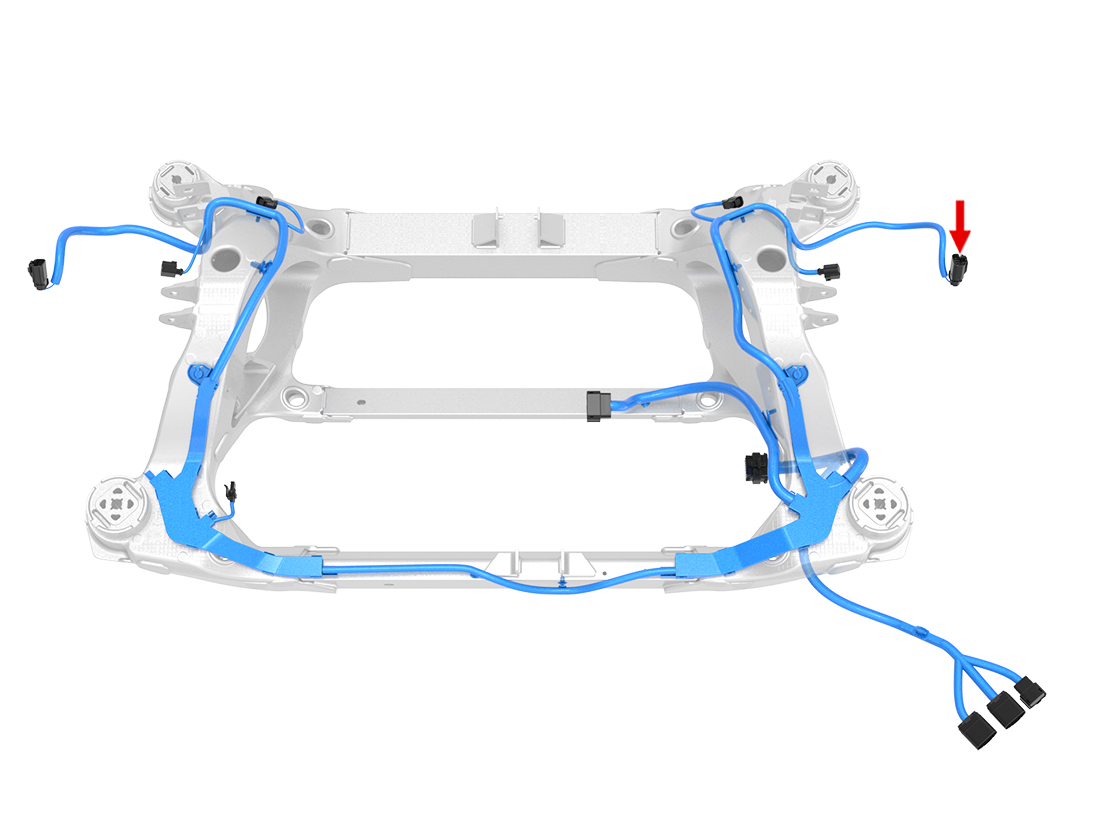

Location:
Connector Detail: FCI 54200409
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination |
| 1 | RD/VT | 2 | X930F-14 | |
| 2 | BU/WH | 0.75 | X930F-6 | |
| 3 | VT/WH | 0.75 | X930F-13 | |
| 4 | RD/WH | 2 | X930F-7 |
X104 - s-lhd-sop10
