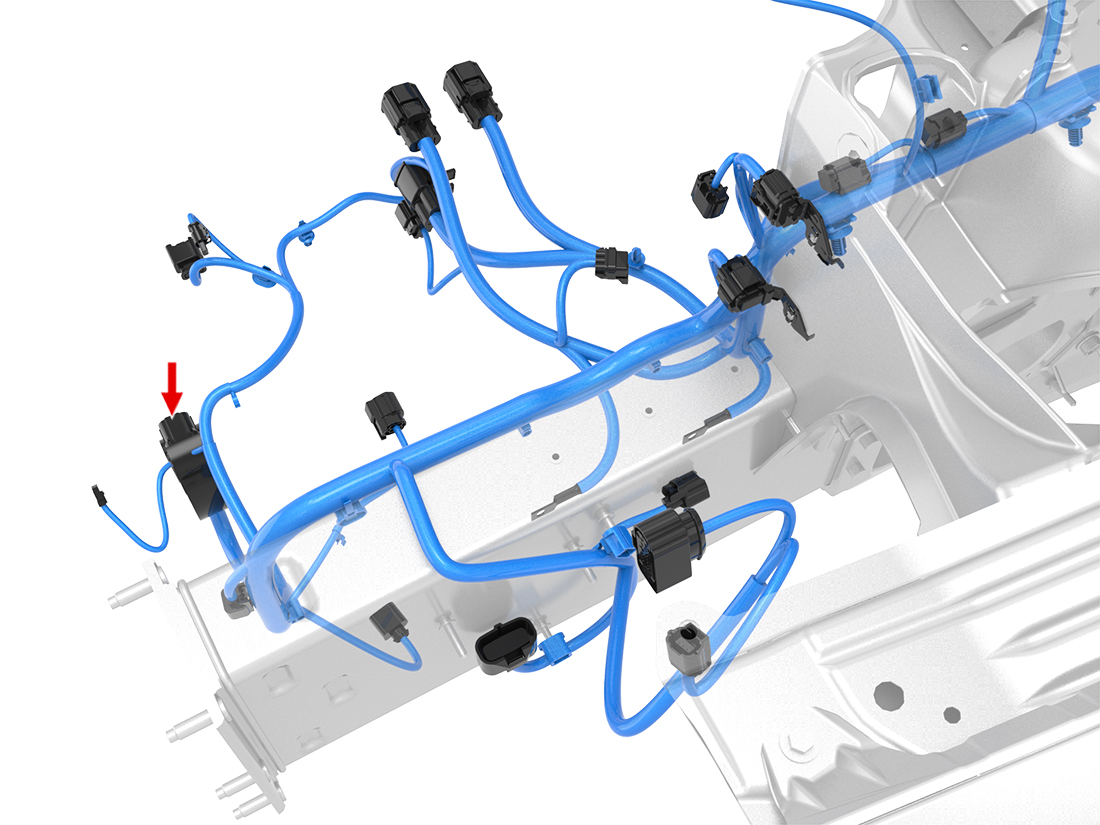

Location:

Connector Detail: BOSCH 1928405654

Color: BK

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	RD	4	SN	X552-1	1928498806
2
3
4	GY	0.5	SN	X112-2	1928498806
5
6
7
8	VT	0.5	SN	X111-2	1928498806
9
10
11
12
13	BK	4	SN	G500-1	1928498806
14	GN	0.35	SN		1928498806
15
16	GY/WH	0.5	SN	X112-1	1928498806
17	BK/WH	0.5	SN	X979M-6	1928498806
18	GN	0.5	SN	X979M-8	1928498806
19	VT/WH	0.5	SN	X111-1	1928498806
20	YE	0.5	SN		1928498806
21
22
23
24
25	RD/VT	1.5	SN	X561-9	1928498806
26	GN/WH	0.35	SN		1928498806
27
28	RD/WH	0.35	SN	X561-13	1928498806
29	WH	0.5	SN	X979M-11	1928498806
30
31	GN/WH	0.5	SN	X979M-1	1928498806
32
33	YE/WH	0.5	SN		1928498806
