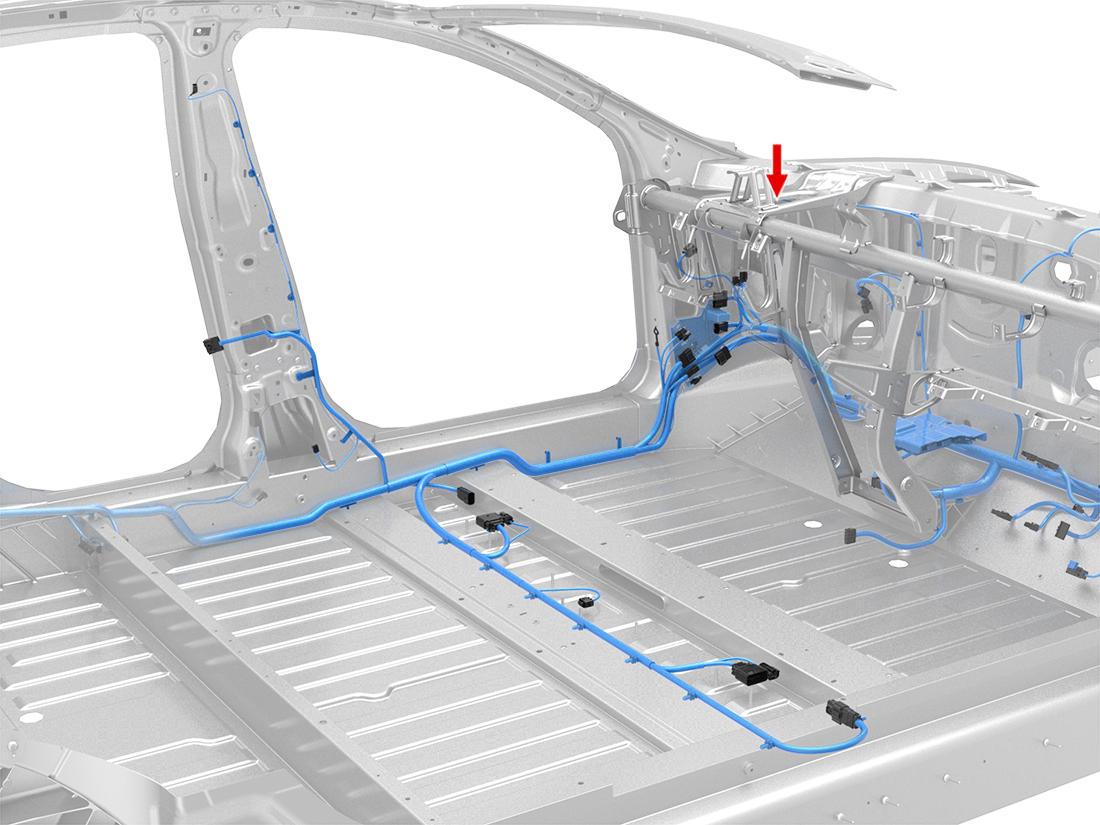

Location:
Connector Detail: YAZAKI 7183-4347
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | BN | 0.35 | SN | X579-3 | 7116-4270-02 |
| 2 | BN | 0.35 | SN | X579-2 | 7116-4270-02 |
| 3 | GN/WH | 0.5 | SN | X989M-12 | 7116-4270-02 |
| 4 | GN/RD | 0.35 | SN | X578-7 | 7116-4270-02 |
