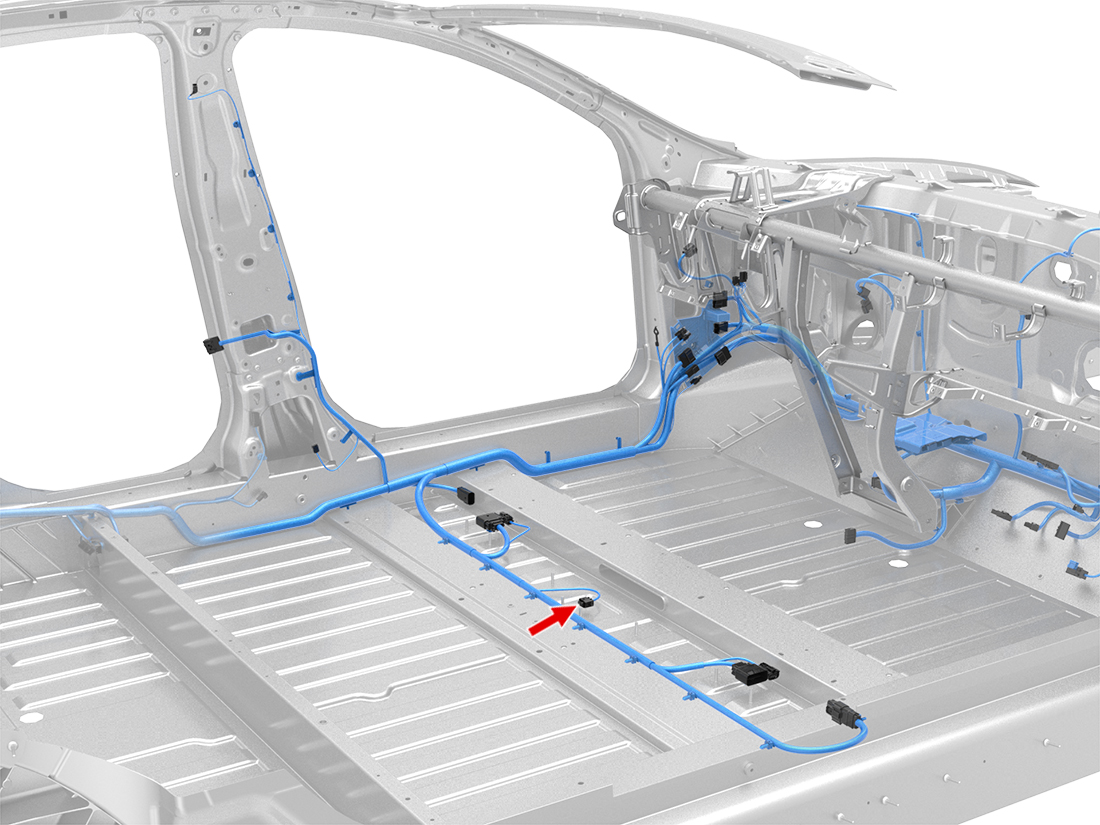

Location:
Connector Detail: AMP 1-967640-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | BK | 0.35 | SN | G660-1 | 5-962885-1 |
| 2 | YE | 0.35 | SN | X776-16 | 5-962885-1 |
| 3 | YE/WH | 0.35 | SN | X776-5 | 5-962885-1 |
| 4 | WH/BK | 0.35 | SN | X571-4 | 5-962885-1 |
