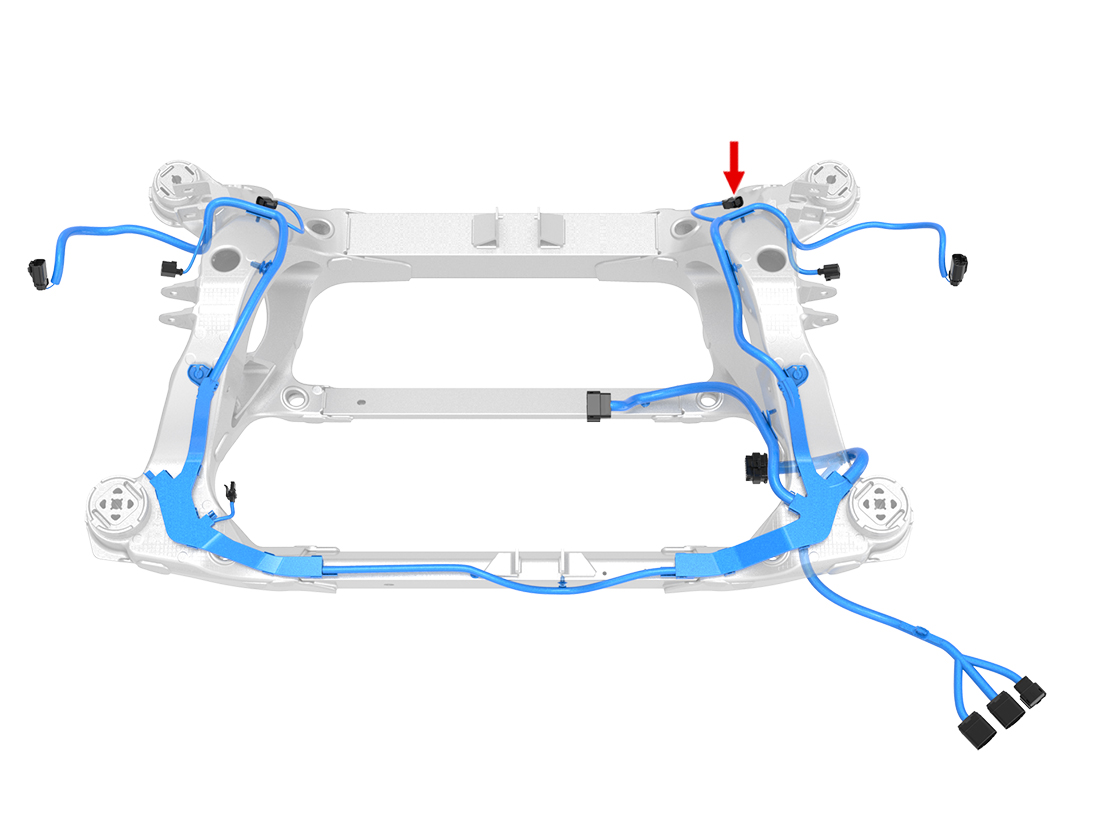

Location:
Connector Detail: MOLEX 34062-0023
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination |
| 1 | BK/WH | 0.5 | X932F-11 | |
| 2 | WH | 0.5 | X932F-12 |
X114 - s-lhd-sop10
2012-2020 Model S Connector Reference
