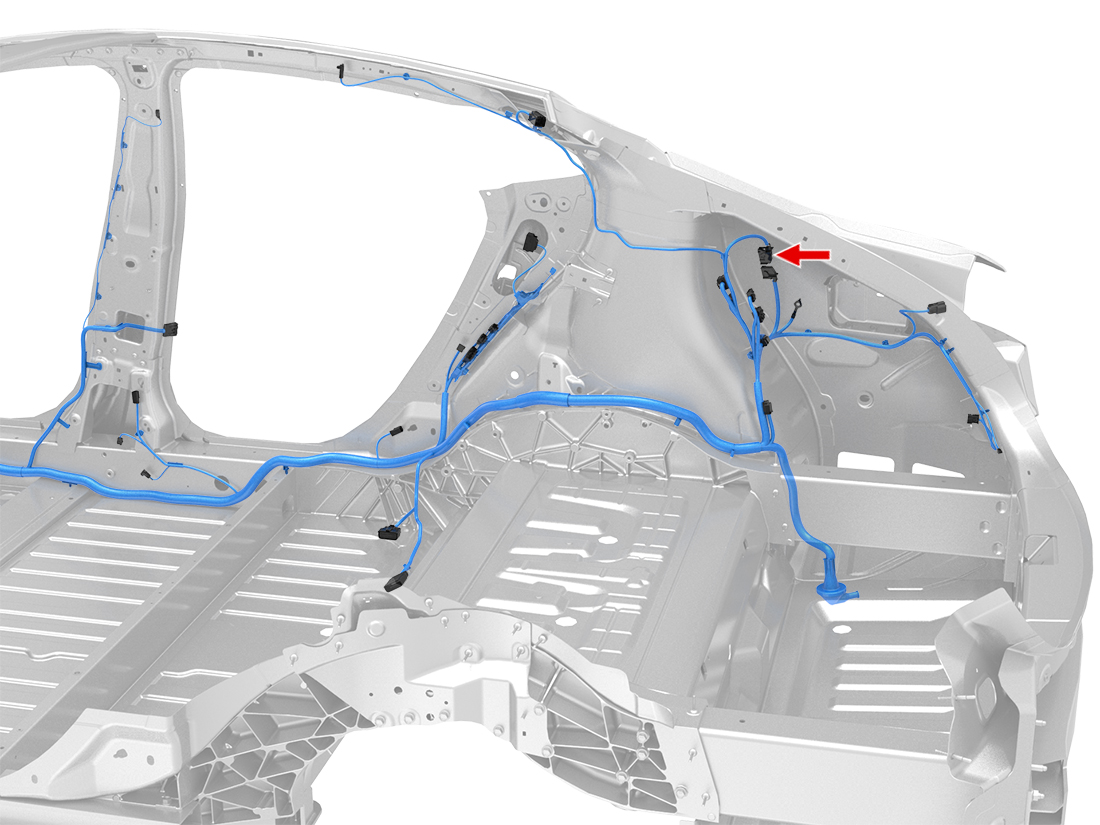

Location:

Connector Detail: AMP 185879-1

Color: YL

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1
2
3
4
5
6	YE/WH	0.35	SN	X909F-9	5-928999-1
7	OG	0.35	SN	X909F-7	5-928999-1
8
9
10
11
12
13	BK	0.5	SN	G700-1	5-928999-1
14	RD/BU	0.5	SN	X989F-14	5-928999-1
15
16
17
18	GN/WH	0.35	SN	X909M-5	5-928999-1
19
20	WH	0.35	SN	X909F-8	5-928999-1
21	RD/WH	0.35	SN	X909M-6	5-928999-1
22	BK/WH	0.35	SN	X909M-10	5-928999-1
23	GN	0.35	SN	X779-21	5-928999-1
24	GN/WH	0.35	SN	X779-10	5-928999-1
25
26
