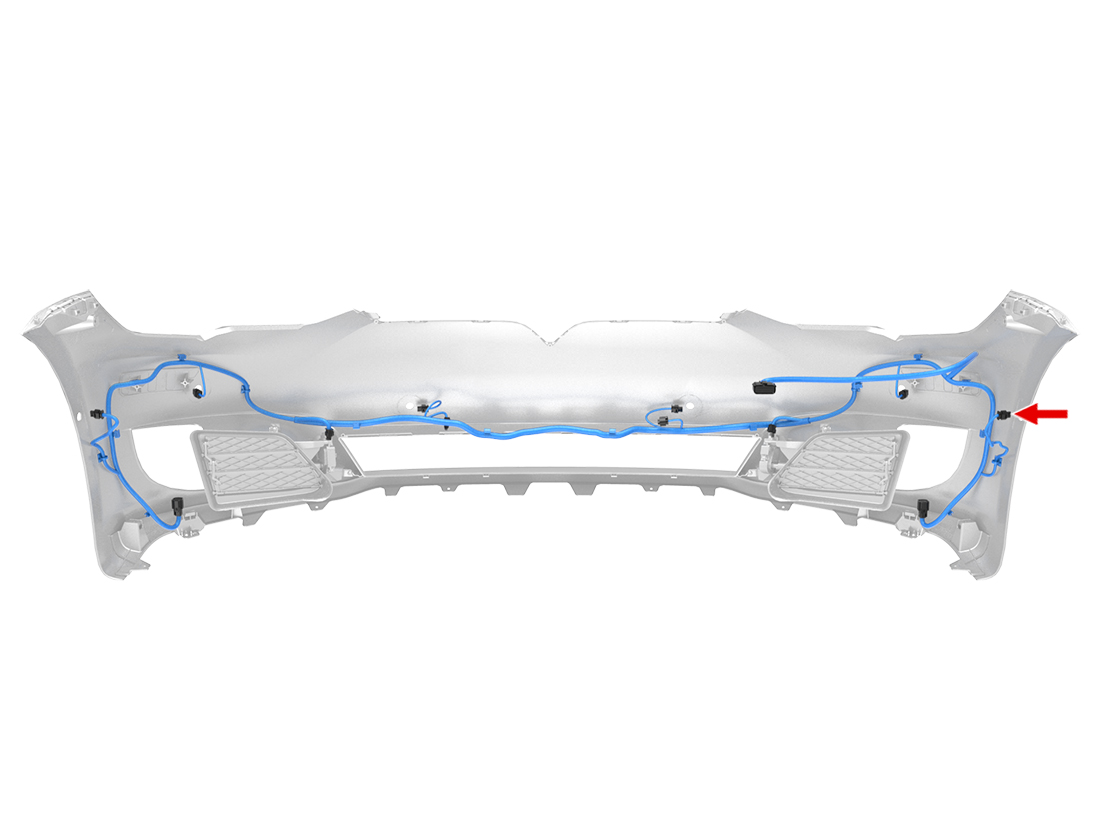

Location:
Connector Detail: FEP 42811100
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination |
| 1 | BN | 0.35 | ||
| 2 | BU/WH | 0.35 | X963F-8 | |
| 3 | RD/VT | 0.35 |
X132A - s-lhd-sop10
