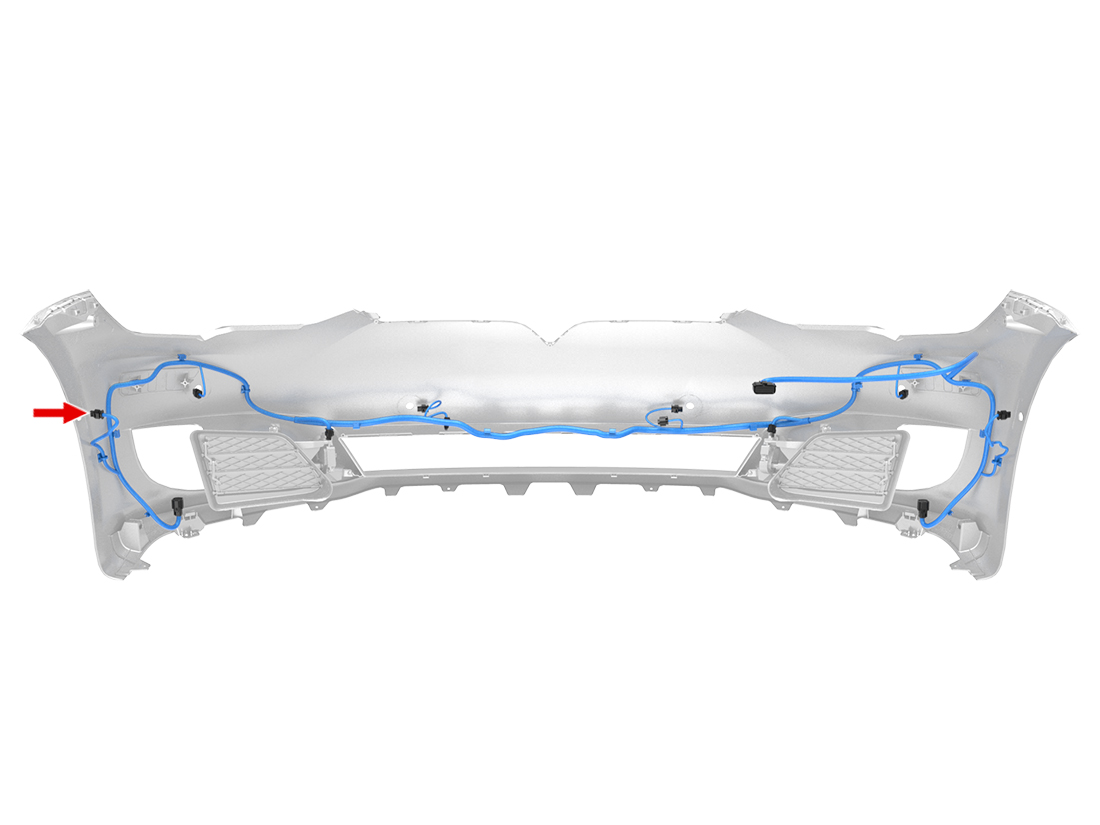

Location:
Connector Detail: FEP 42811100
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | BN | 0.35 | SN | 7-1452665-1 | |
| 2 | RD/YE | 0.35 | SN | X963F-7 | 7-1452665-1 |
| 3 | RD/VT | 0.35 | SN | 7-1452665-1 |
X133A - s-lhd-sop10
2012-2020 Model S Connector Reference
