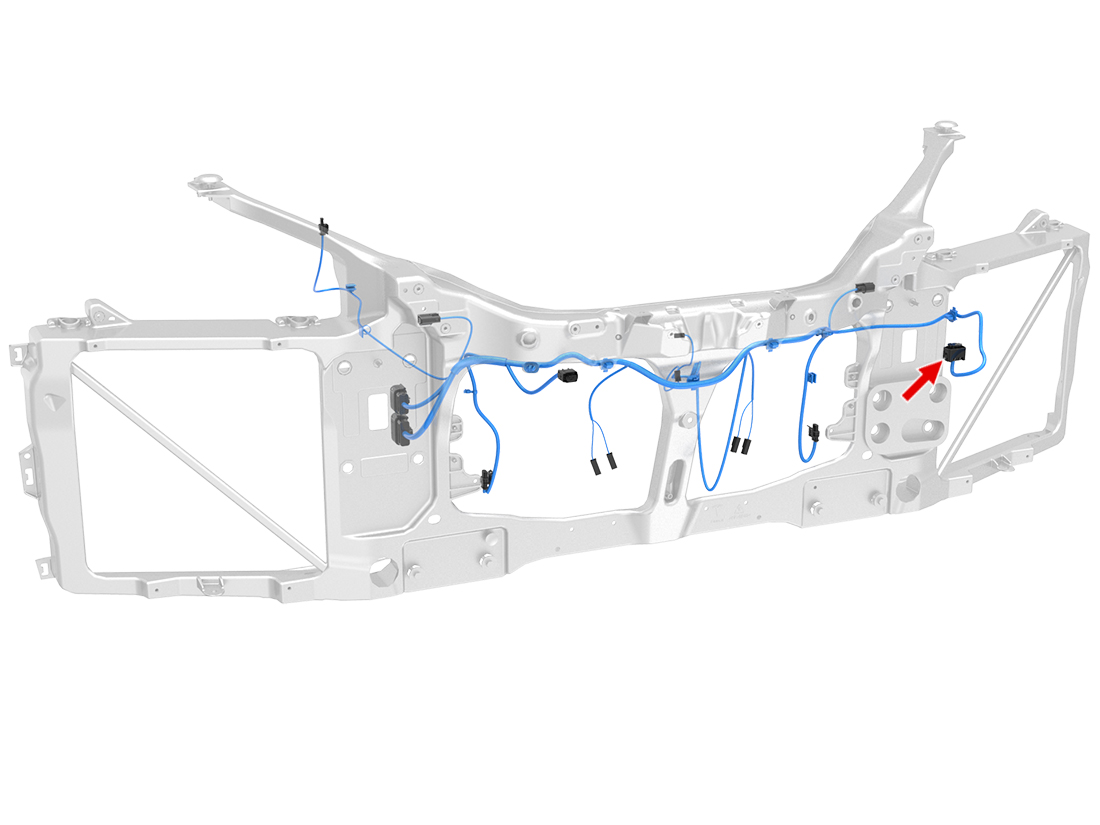

Location:
Connector Detail: SUMITOMO 6189-7895
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | BK | 0.35 | SN | 7-1452665-1 | |
| 2 | BU/WH | 0.35 | SN | X965F-2 | 7-1452665-1 |
| 3 | BU | 0.35 | SN | X965F-3 | 7-1452665-1 |
| 4 | RD | 0.35 | SN | X965F-1 | 7-1452665-1 |
| 5 | VT/WH | 0.35 | SN | X966F-12 | 7-1452665-1 |
| 6 | VT | 0.35 | SN | X966F-13 | 7-1452665-1 |
| 7 |
