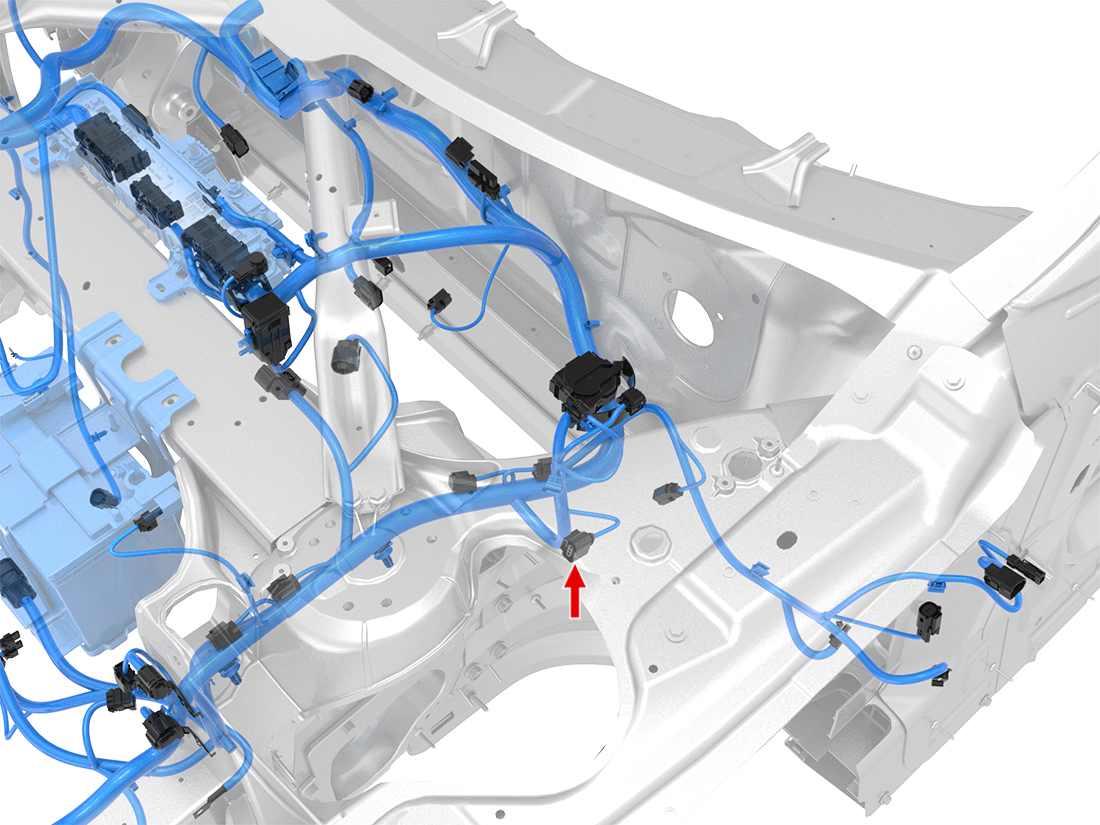

Location:

Connector Detail: FEP 42511400

Color: BK

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	BK/GY	0.35	AU	X180A-34	1564324-2
2	GY	0.35	AU	X180A-33	1564324-2
3	RD	0.35	AU	X180A-13	1564324-2
