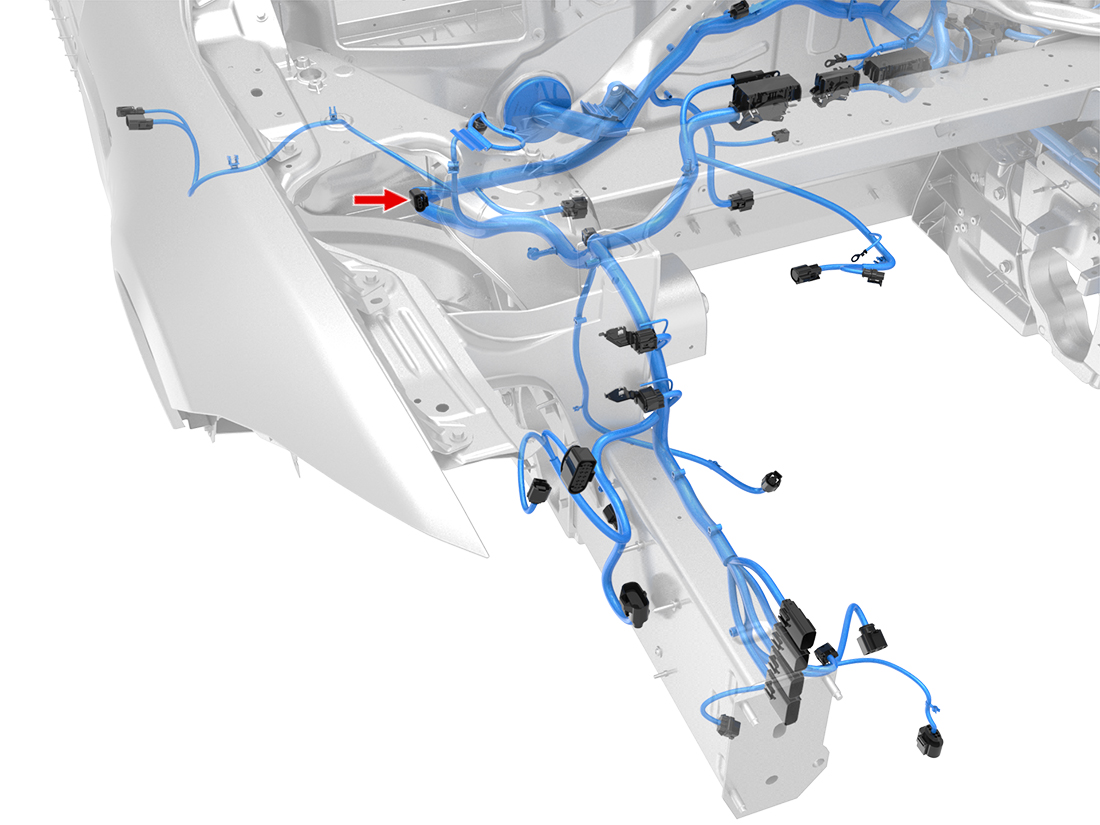

Location:

Connector Detail: FEP 42511400

Color: BK

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	BK/WH	0.35	SN	X180A-17	1564324-1
2	WH	0.35	SN	X180A-16	1564324-1
3	RD/WH	0.35	SN	X180A-1	1564324-1
