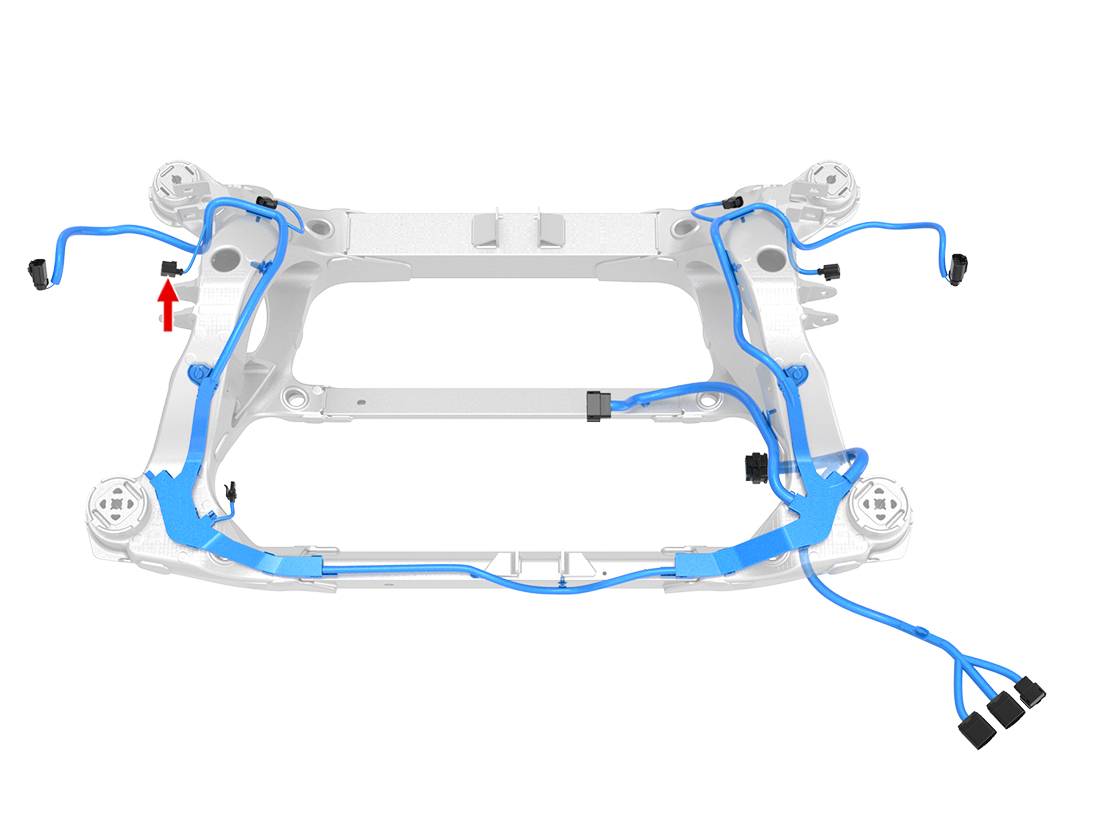

Location:
Connector Detail: FEP 42511400
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | BK | 0.5 | AU | X932F-3 | 1241380-2 |
| 2 | VT | 0.5 | AU | X932F-2 | 1241380-2 |
| 3 | RD/GN | 0.5 | AU | X932F-1 | 1241380-2 |
X184 - s-lhd-sop10
2012-2020 Model S Connector Reference
