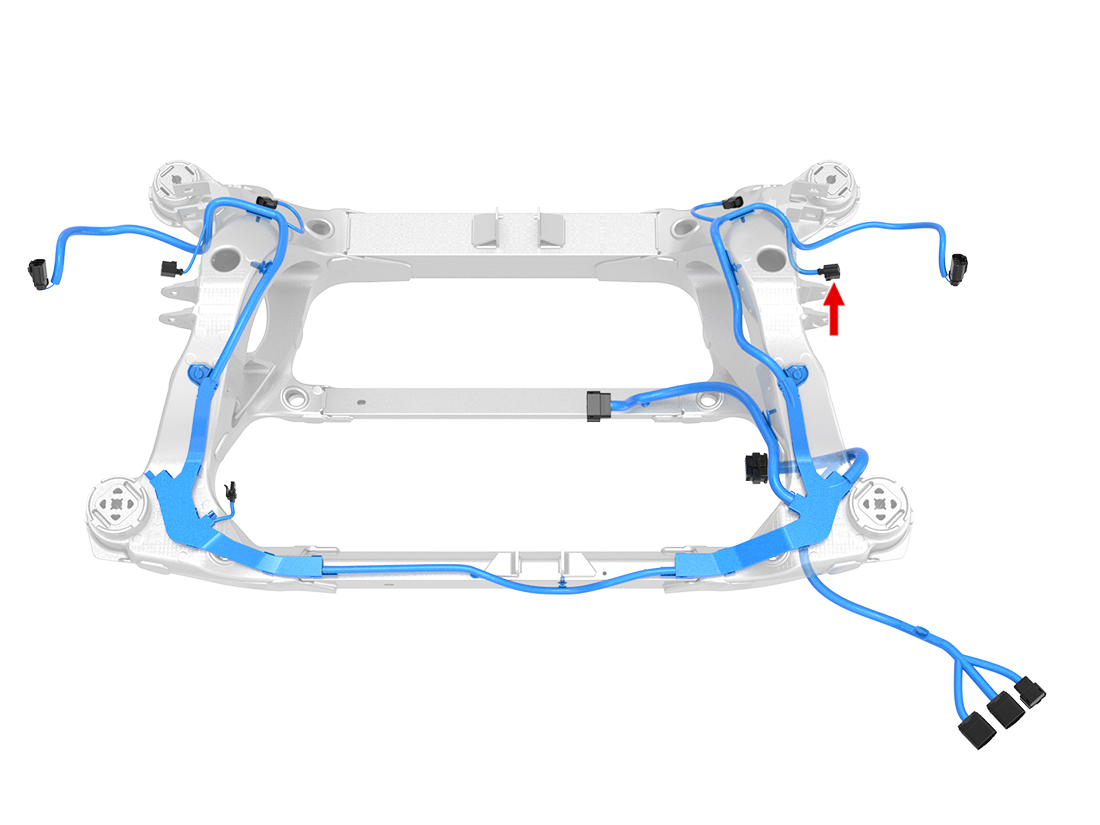

Location:
Connector Detail: FEP 42511400
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | GY/WH | 0.5 | SN | X932F-9 | 1241380-1 |
| 2 | BN | 0.5 | SN | X932F-8 | 1241380-1 |
| 3 | RD/VT | 0.5 | SN | X932F-7 | 1241380-1 |
X185 - s-lhd-sop10
2012-2020 Model S Connector Reference
