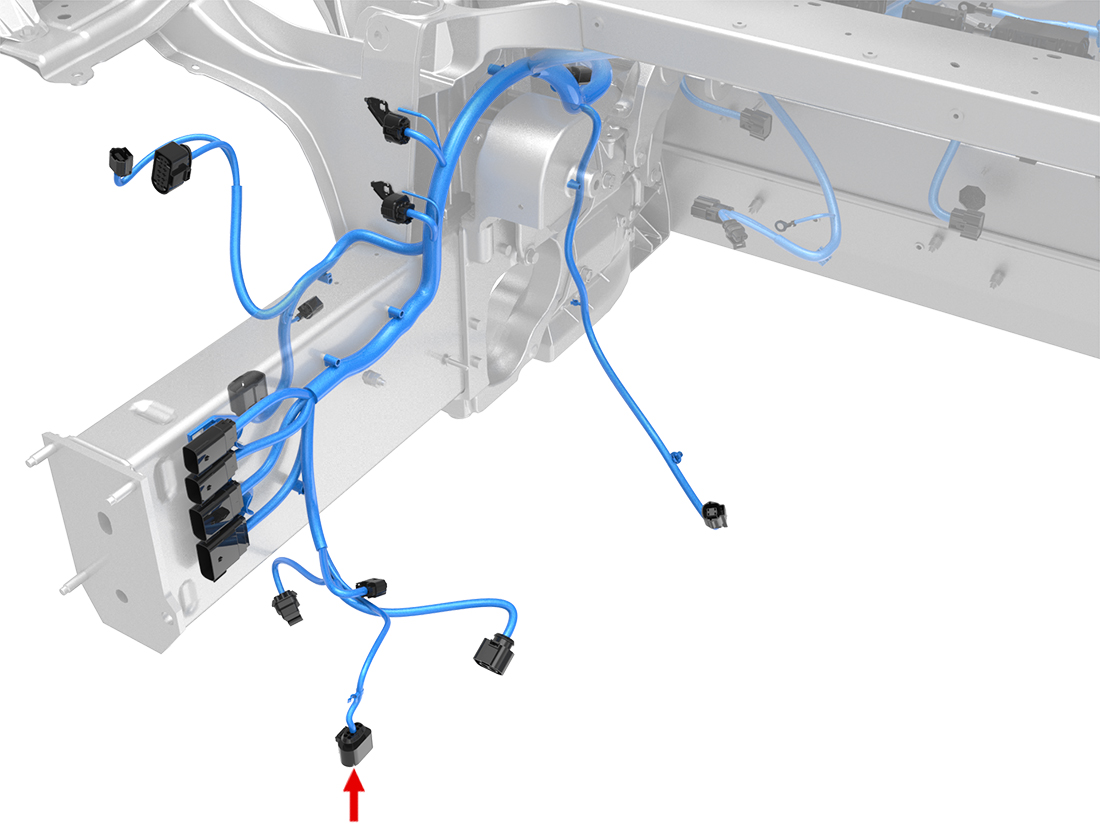

Location:

Connector Detail: FEP 42122600

Color: BK

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	RD	0.35	SN	X181A-8	969005-2
2	WH	0.35	SN	X181A-9	969005-2
3	GN	0.35	SN	X181A-16	969005-2
4	YE	0.35	SN	X181A-6	969005-2
5	GY	0.35	SN	X181A-14	969005-2
6	GY/WH	0.35	SN	X181A-11	969005-2
7	BK/GY	0.35	SN	X180A-22	969005-2
8	BU	0.35	SN	X181A-7	969005-2
9	VT	0.35	SN	X180A-23	969005-2
10	GN/WH	0.35	SN	X180A-8	969005-2
