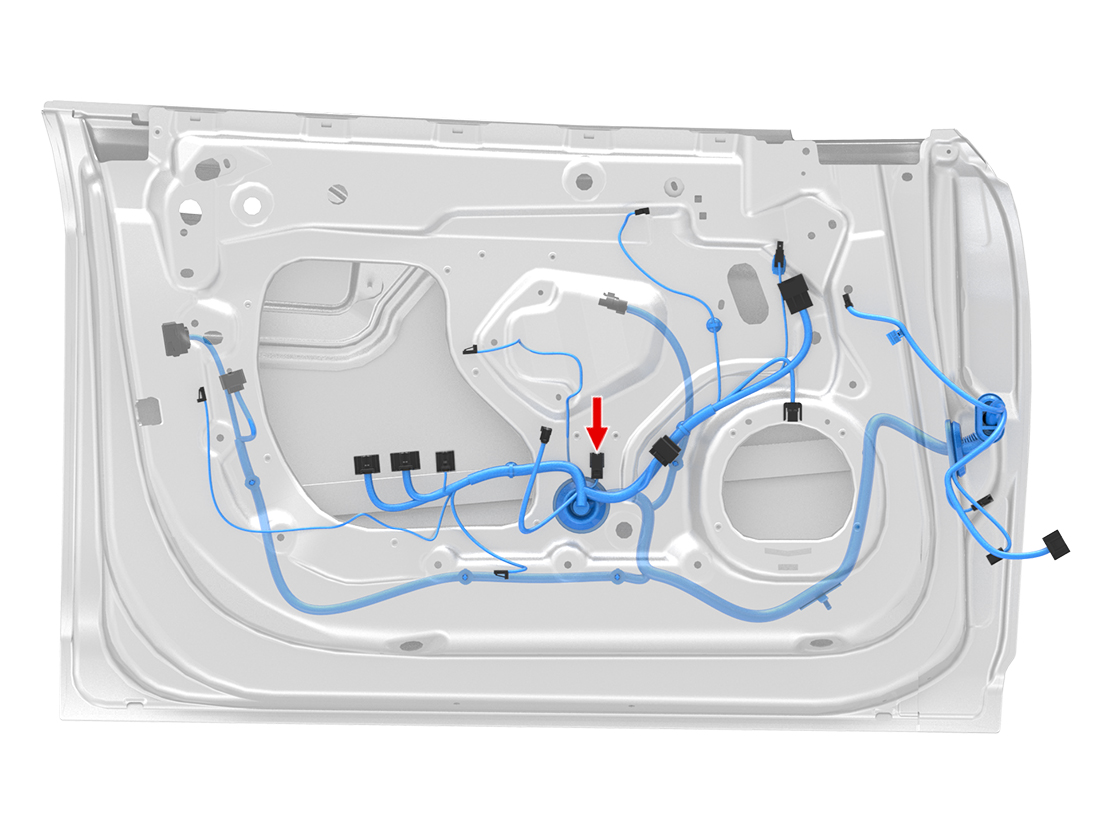

Location:
Connector Detail: MOLEX 31403-2600
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | OG/BK | 0.5 | SN | X943F-5 | 33468-0002 |
| 2 | GY/WH | 0.5 | SN | X943F-14 | 33468-0002 |
X204 - s-lhd-sop10
