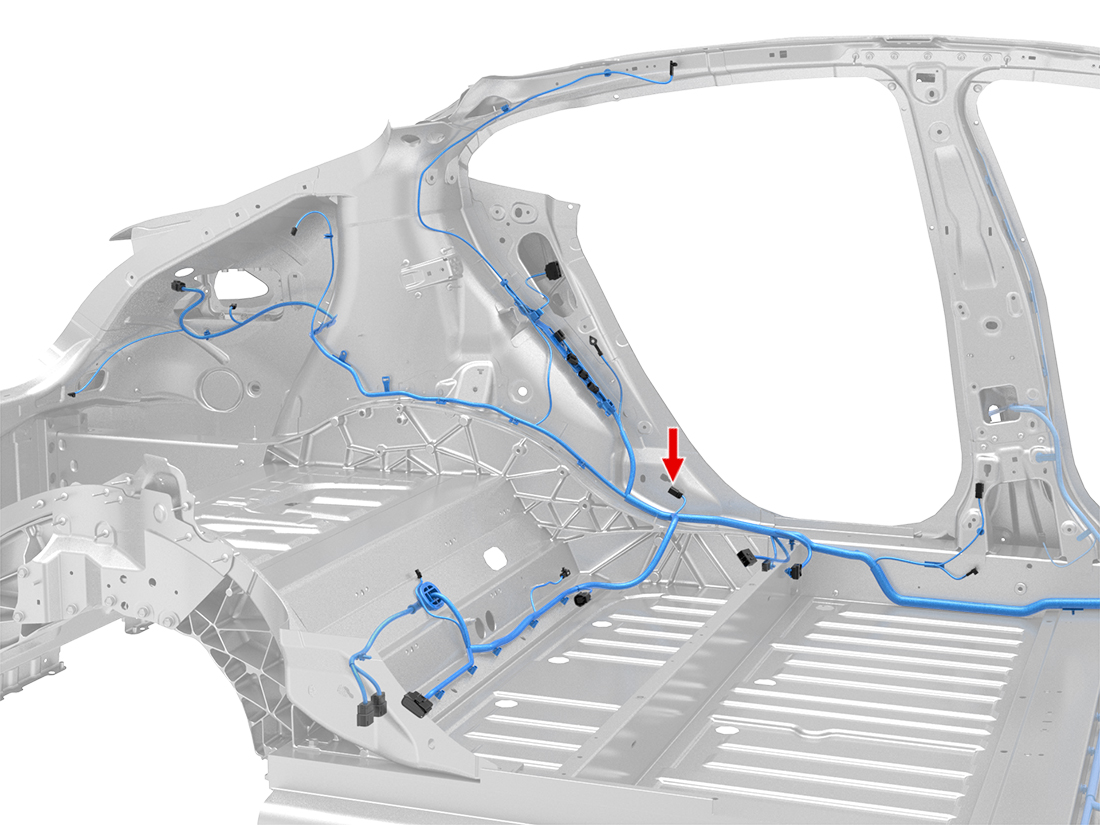

Location:
Connector Detail: MOLEX 31403-2200
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | RD/YE | 0.5 | SN | X201-27 | 33468-0023 |
| 2 | BU | 0.5 | SN | X201-37 | 33468-0023 |
X208 - s-lhd-sop10
2012-2020 Model S Connector Reference
