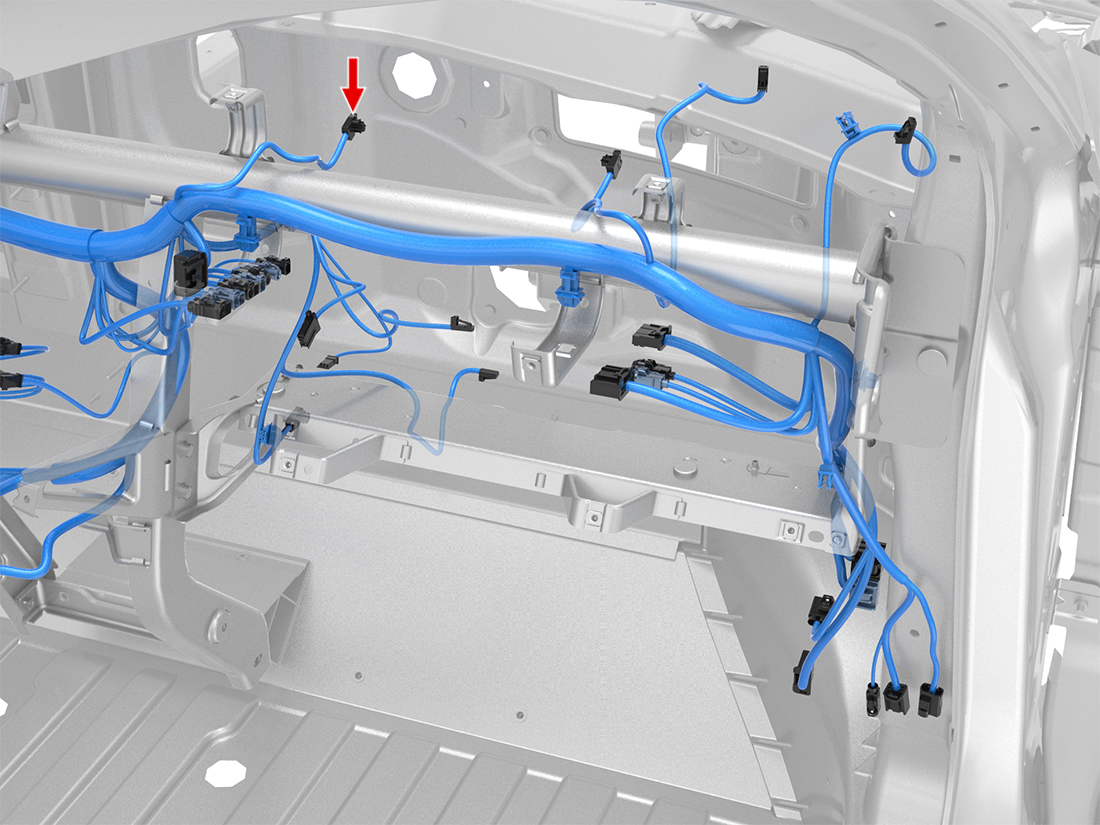

Location:
Connector Detail: AMP 1612121-4
Color: YL
Serviceability: Connector Pigtail
| Cavity | Color | Size | Plate | Destination |
| 1 | RD/GY | 0.5 | X949F-18 | |
| 2 | BK/GY | 0.5 | X949F-19 |
X222 - s-lhd-sop10
