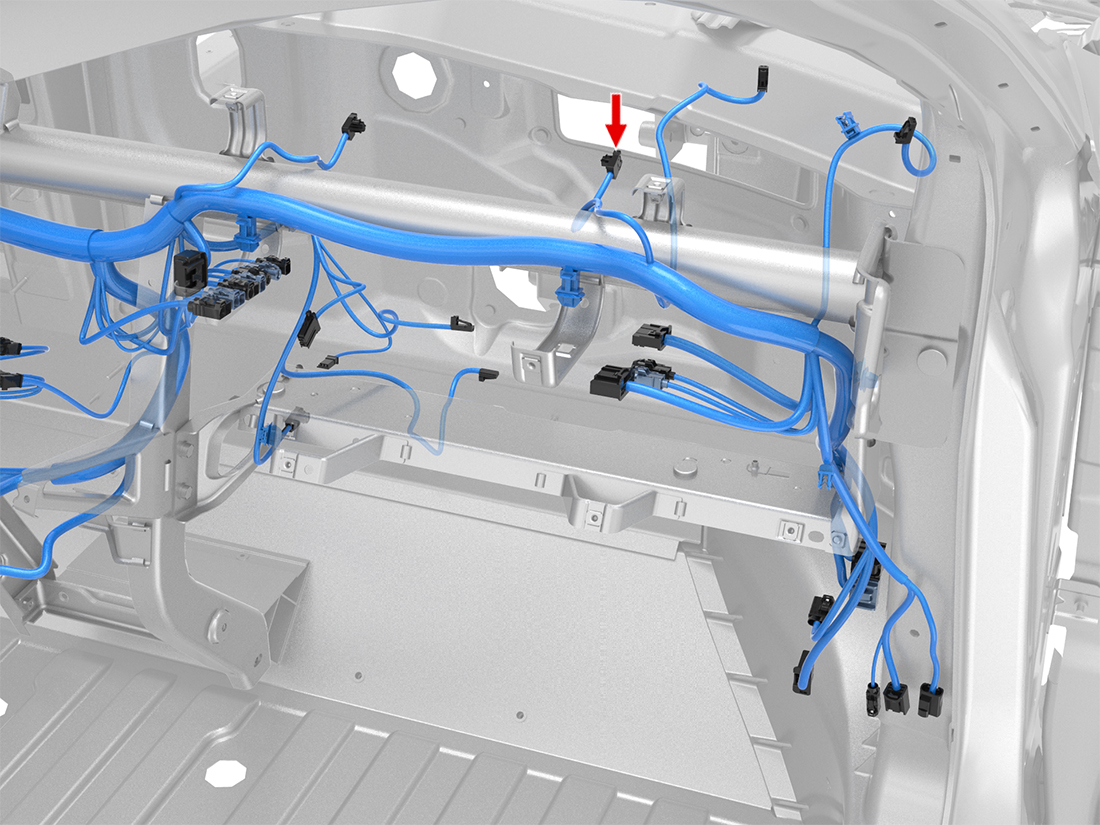

Location:
Connector Detail: AMP 1612121-5
Color: OG
Serviceability: Connector Pigtail
| Cavity | Color | Size | Plate | Destination |
| 1 | RD/BK | 0.5 | X949F-12 | |
| 2 | OG/BK | 0.5 | X949F-13 |
X223 - s-lhd-sop10
2012-2020 Model S Connector Reference
