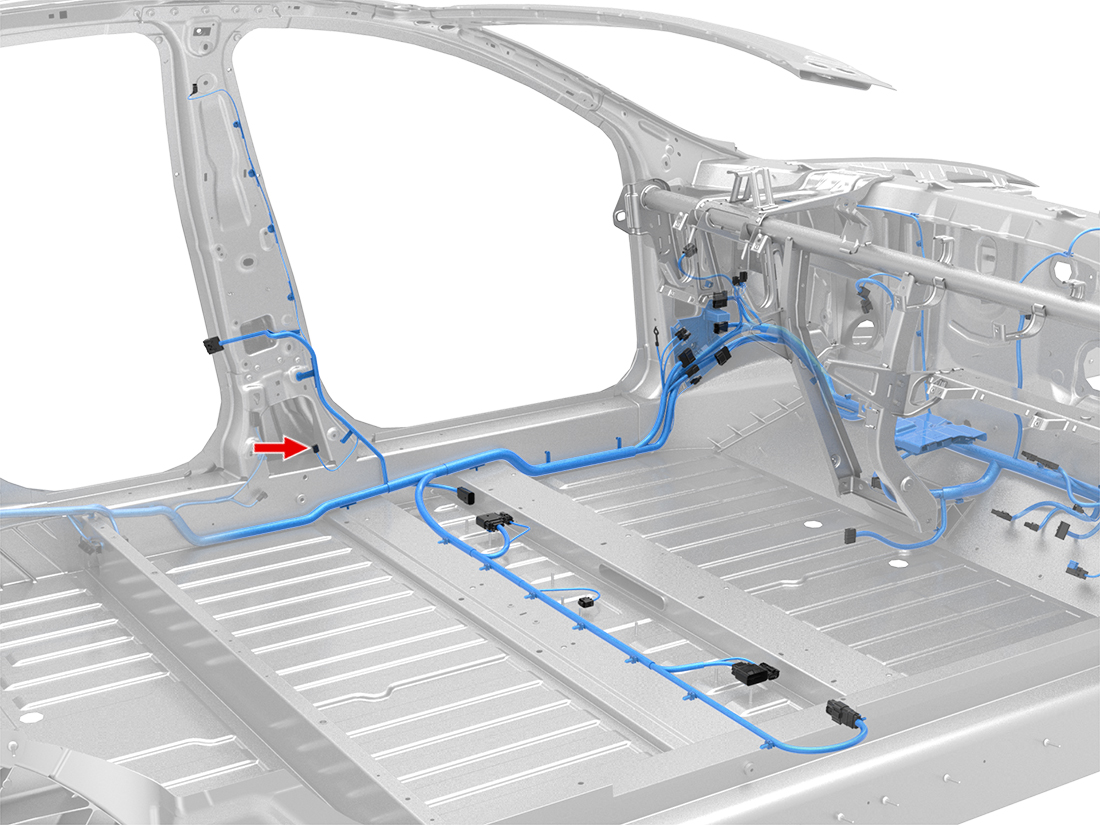

Location:
Connector Detail: AMP 1612121-5
Color: OG
Serviceability: Connector Pigtail
| Cavity | Color | Size | Plate | Destination |
| 1 | RD/GN | 0.5 | X201-3 | |
| 2 | BK/VT | 0.5 | X201-4 |
X230 - s-lhd-sop10
2012-2020 Model S Connector Reference
