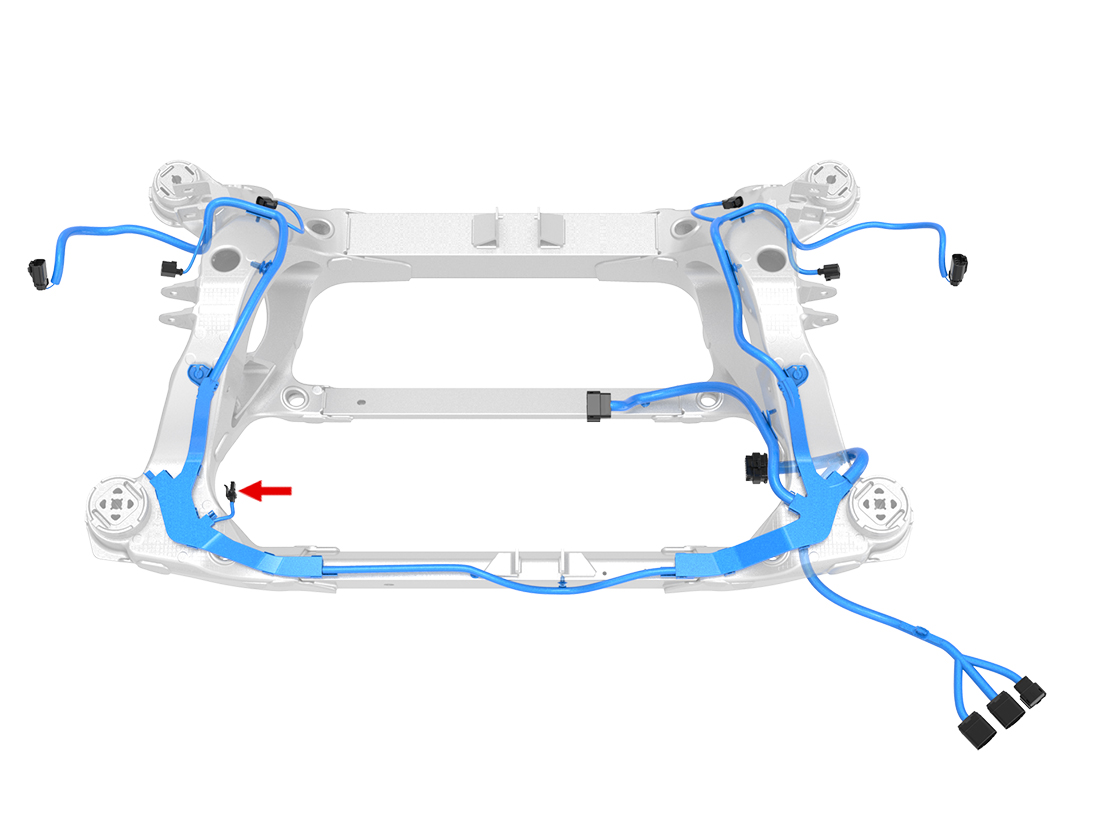

Location:
Connector Detail: AMP 444046-4
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination |
| 1 | BK | 0.75 | X250-17 | |
| 2 | GN | 0.75 | X250-16 | |
| 3 | RD/GY | 0.75 | X250-10 | |
| 4 | RD/VT | 0.75 | X250-9 |
X253 - s-lhd-sop10
2012-2020 Model S Connector Reference
