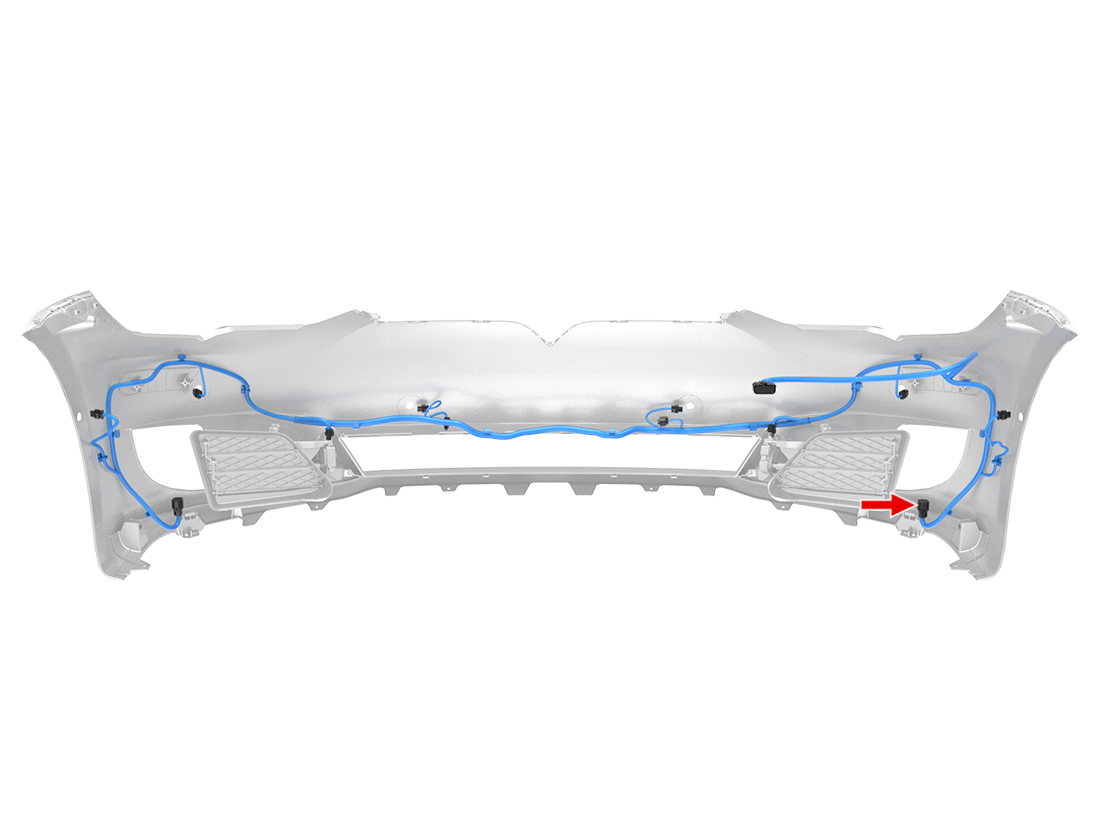

Location:
Connector Detail: MOLEX 33472-0601
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | |||||
| 2 | RD/WH | 0.35 | SN | X964F-5 | 33012-3003 |
| 3 | BU/WH | 0.35 | SN | X964F-4 | 33012-3003 |
| 4 | GN/RD | 0.35 | SN | X964F-6 | 33012-3003 |
| 5 | BK | 0.5 | SN | 33012-3003 | |
| 6 |
