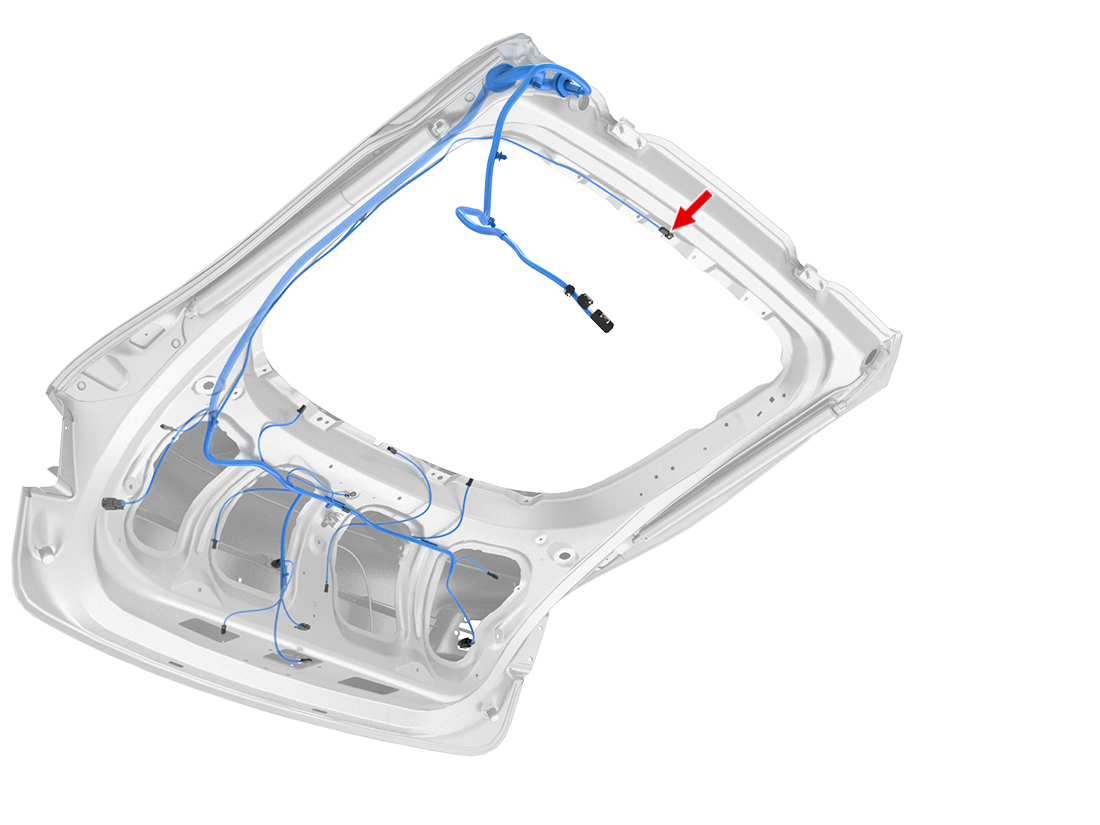

Location:
Connector Detail: DELPHI 12059252
Color: RD
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| A | WH/BK | 0.5 | SN | X921F-11 | 12059894 |
| B | BK | 0.5 | SN | 12059894 |
X269 - s-lhd-sop10
2012-2020 Model S Connector Reference
